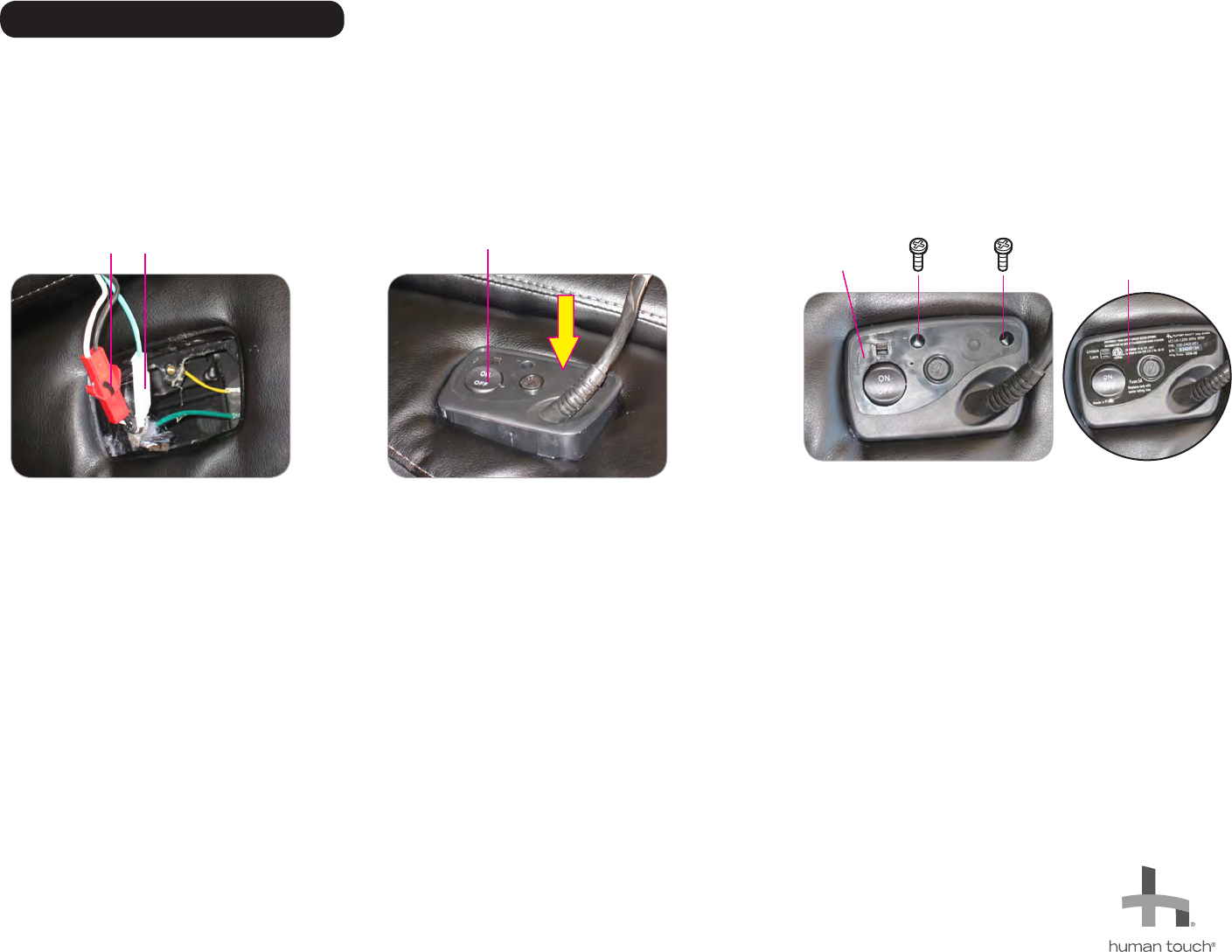

INSTALLING THE NEW POWER PANEL
1. Connect the new power panel connectors to the corresponding connectors on the side of the chair (Fig.4).
2. Insert the power panel into the opening in the side of the chair, then press firmly until the power panel face plate is flush with the chair upholstery (Fig.5).
3. Using a Phillips-head screwdriver, replace the two screws to secure the power panel to the chair (Fig.6).
4. Carefully apply the new power panel label to the power panel, smoothing it with your fingers.
Connect the connectors
New power panel
(Fig.4)
Apply new label
(Fig.6)
(Fig.5)
New power panel
