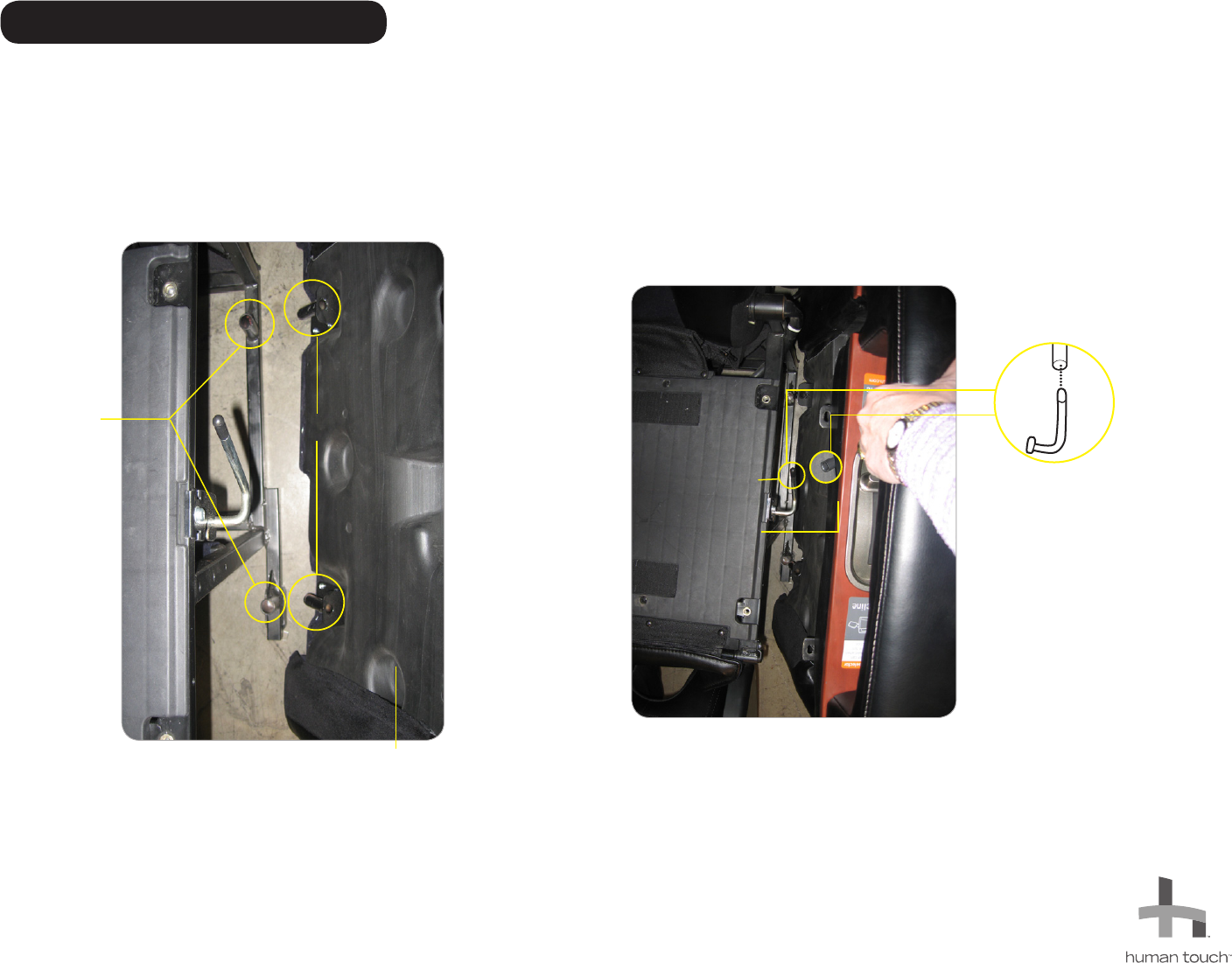

1. Align the armrest post with the corresponding fittings on the chair frame (Fig.3).

2. Align the metal shift lever rod with the plastic bushing on the armrest, then insert the rod into the bushing as you push the armrest downward into position (Fig.4).

3. Replace the two Allen screws/washers you removed earlier to secure the armrest to the chair.

4. Plug in the chair, power it on, then verify that the recline lever is working properly. If it is not, the shift lever rod is not properly installed into the plastic bushing or the armrest posts

are not properly installed in the fittings. Repeat steps 1 and 2. – repeat step 2.

5. Replace the chair pads.

INSTALLING THE NEW ARMREST

Please send any questions or comments regarding these instructions to: documentation@humantouch.com

, LLC.

(Fig.4)

Armrest post

Fittings on the

chair frame

Armrest

(Fig.3)

Shift lever rod

Align shift lever rod

with plastic bushing

Plastic bushing
