Removal and replacement procedures 28
4.

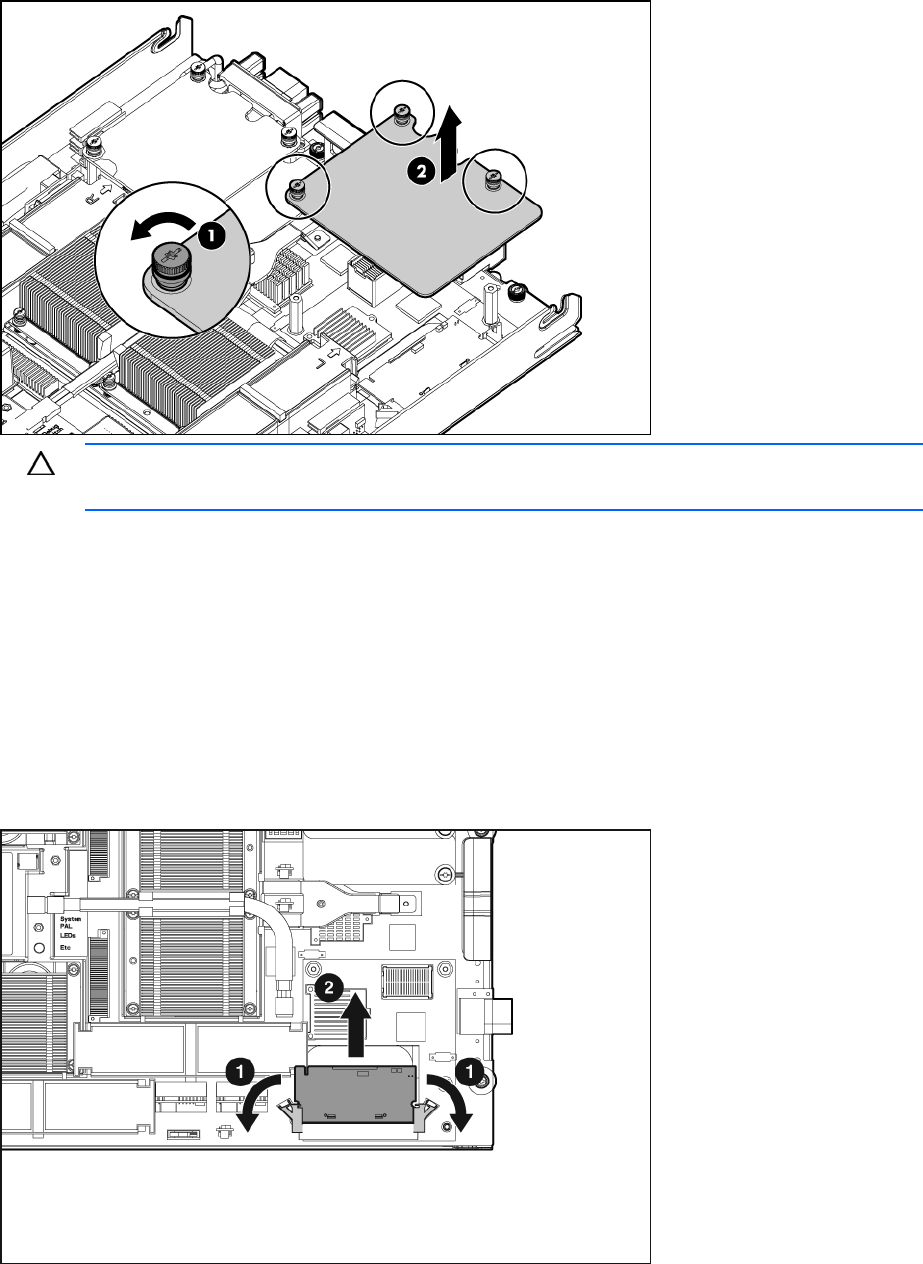

Remove the mezzanine card.
CAUTION: To prevent damage to the server blade, apply pressure over the mezzanine
connector when installing the mezzanine card. Do not apply pressure to the edges of the card.
To replace the component, reverse the removal procedure.
HP Smart Array E200i Controller cache module
To remove the component:
1.
Power down the server blade (on page 23).
2.
Remove the server blade (on page 23).
3.
Remove the access panel ("Access panel" on page 24).
4.
Remove the cache module.
To replace the component, reverse the removal procedure.
