Page | 10

CONNECTING HANDRAILS WITH ADJUSTABLE ELBOWS

The adjustable elbow is used to connect two 1-1/2″ diameter round tubes and is most commonly used to

connect two ramp handrails when the ramps change direction with a platform in-between.

5.1.

CONNECTING TWO 1-1/2″ DIAMETER ROUND TUBES (RAMP HANDRAILS):

Because each

installation is unique, the round tubes used to connect two adjustable elbows must be cut to fit at

the job site.

5.1.1.

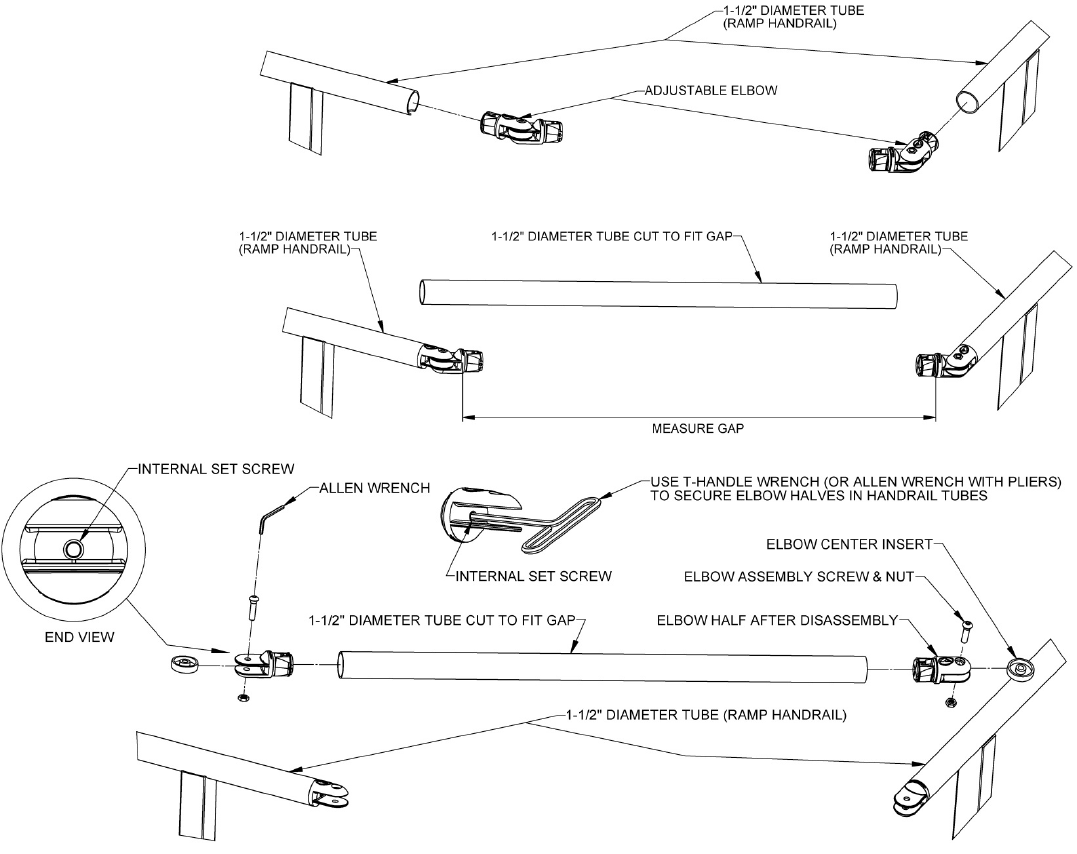

Slide an adjustable elbow into each 1-1/2″ diameter round tube (FIG. 4.1).

5.1.2.

Position both until they are aligned (do not tighten), and measure the distance between

the two larger round faces (FIG. 4.2).

NOTE:

When connecting ramp handrails, the

gap in the upper and lower handrail tube will be different. Be sure to measure both

before cutting the round tube.

FIG. 4.1

FIG. 4.2

FIG. 4.3
