3-27IN1508 Scaling Presentation Switcher • Operation
NOTE
The and buttons toggle between the top and bottom selection where applicable.
The and buttons move the slider on the selected status bar indicator.
No
menu
display
= IR remote control
ASPECT
RATIO
Sharpness
Aspect Ratio 4:3
+32
(0 to 63)
SHARP
PHASE
Phase
+64
(0 to 128)
Zoom
Pan
Sharpness
Aspect Ratio 4:3
Phase
Zoom
Pan
V
H
Timeout
Timeout
Timeout
ZOOM
PAN
Timeout
Timeout
Press to change
the aspect ratio.

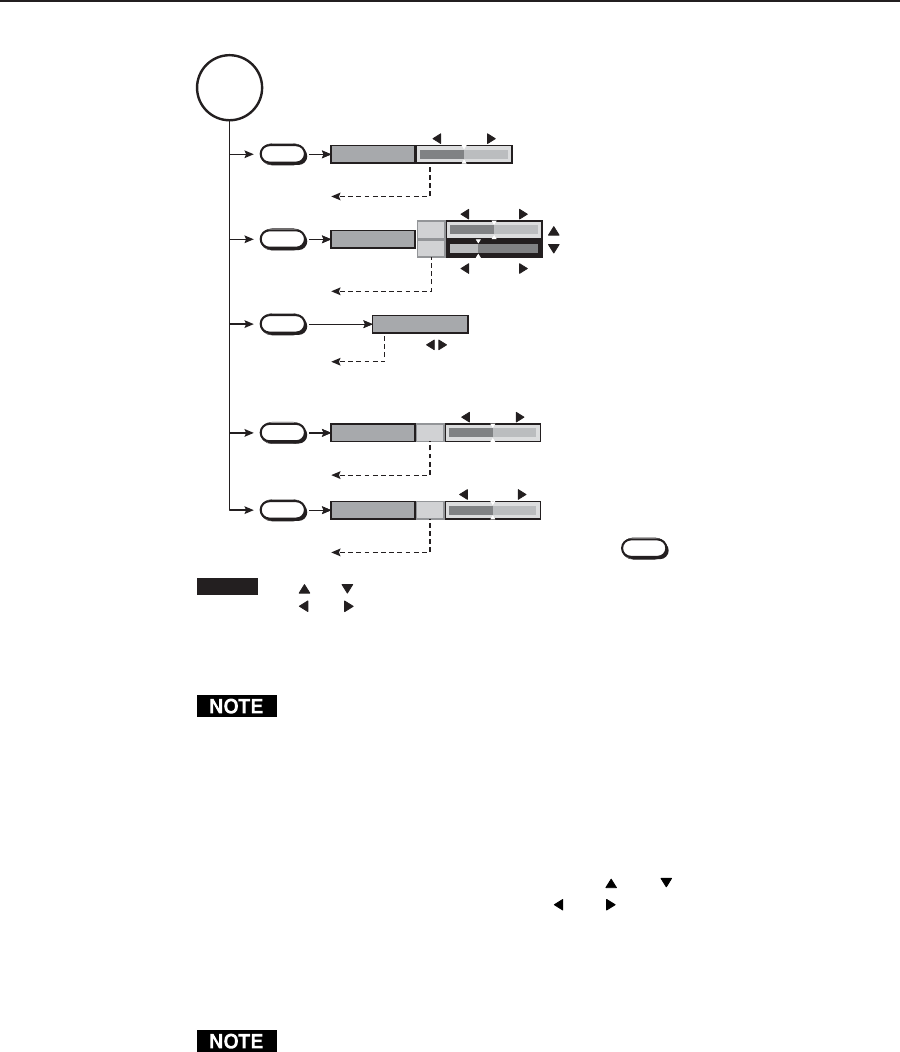

Figure 3-20 — Picture adjustments flowchart, IR remote control buttons
Color and Tint adjustments are available only for interlaced component video,
S-video, and composite video inputs.
1. Press the appropriate picture adjustment button: centering (Center), sizing
(Size), brightness and contrast (Brt/Cont), color and tint (Col/Tnt), sharpness
filter (Sharp), fine pixel phase shift (Phase), or aspect ratio (Aspect). The
on-screen display shows the name of the adjustment and the current setting
value.
2. For multiple status bar indicators, use the
and buttons to highlight the
desired status bar indicator. Use the and buttons to move the slider on the
highlighted status indicator bar (change the value) for the following
adjustments:
• Center: Press the Center button once to toggle between the Window
Centering display and the Image Centering display.
The Image Centering display is never shown if the PIP mode is on.
Image Centering display — This display consists of the Horizontal Start
and Vertical Start status indicator bars, which are advanced adjustments
that should be attempted only by knowledgeable A/V professionals. See
“Horizontal Start and Vertical Start status indicator bars”, on page 3-35.
