15Section 6 — Maintenance & adjuStMentS

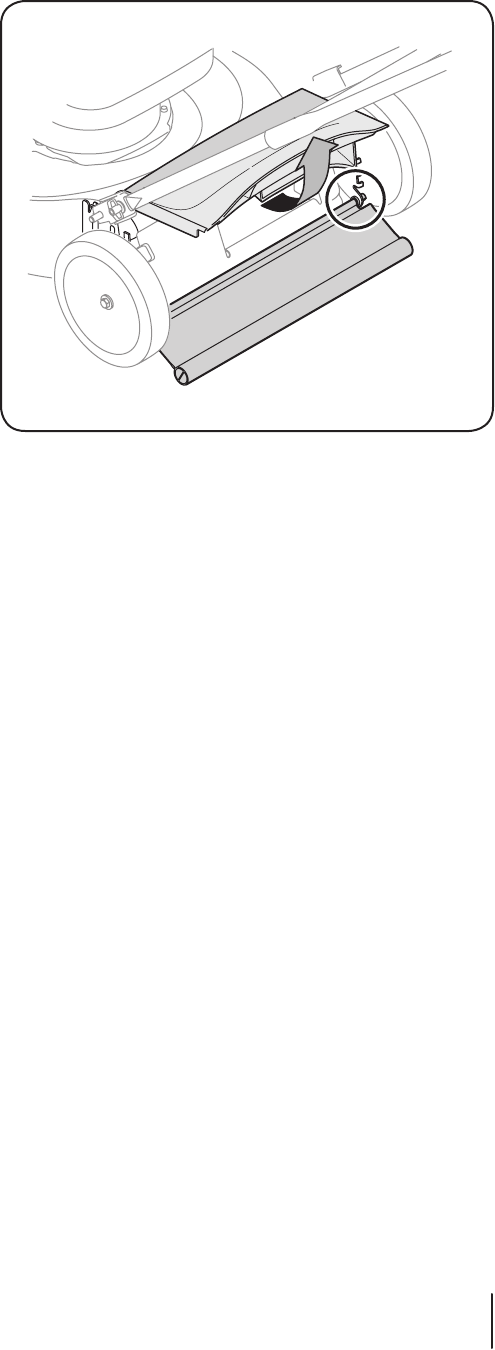

Figure 6-2
Replacing Rear Flap
1. To remove rear flap, lift rear door, and press flap in on
either side to remove from hole. See Fig. 6-2.
2. Remove flap from opposite hole and replace with new flap
in the opposite order and manner of removal.
Engine Care
A list of key engine maintenance jobs required for good
performance by the mower is given below. Follow the
accompanying engine manual for a detailed list and instructions.
• Maintain oil level.
• Service air cleaner every 25 hours under normal conditions.
Clean every few hours under extremely dusty conditions.
• Clean spark plug and reset the gap once a season.
• Clean engine regularly with a cloth or brush. Keep the area
around the top of the engine clean to permit proper air
circulation. Remove all grass, dirt, and combustible debris
from muffler area.
