2.CONTROLS/ /
3. BUTTON TERMINOLOGY
English
English
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3 (unfold).
Names of the Buttons and their Functions
[RELEASE] button
• Press the [RELEASE] button to unlock the
DCP.
[ROTARY] knob
• Adjust the volume by turning the knob
clockwise or counterclockwise.
• Use the knob to perform various settings.
[CD SLOT]
• CD insertion slot.
[Z] button
• Use the button to select one of the three
types of sound characteristics already stored
in memory. (Z-Enhancer)
[Q] button
• Ejects a CD when it is loaded into the unit.
[DIRECT] button
• Stores a station into memory or recall it
directly while in the radio mode.
[ISR] button
• Recalls ISR radio station in memory.
• Press and hold for 2 seconds or longer:
Stores current station into ISR memory (radio
mode only).
[RPT] button
• Plays repeatedly while in the CD/MP3 mode.
[RDM] button
• Performs random play while in the CD/MP3
mode.
[SCN] button
• Performs scan play for 10 seconds for each
track while in the CD/MP3 mode.
[UP], [DN] button
• Play first track of next or previous folder
which contain MP3 files.∗
∗ Key function only available after MP3
indicator turned on.
[T] button
• Switches MP3 TITLE display.
• Press and hold for 1 second to scroll display
data.
[D] button
• Switch the display indication (Main display,
clock display).
MP3 FUNCTION-DISPLAY SELECTION
• Display changes in the following order: Track
No. / Play time ➜ Folder No. / Track No. ➜
Title Display ➜ Clock Display ➜ Track No. /
Play time...
• Long press to enter adjustment mode.
[BND] button
• Switches the band, or seek tuning or manual
tuning while in the radio mode.
• Plays a first track while in the CD/MP3 mode.
• Press and hold the button to select between
CD-DA playback and MP3 playback in
multisession CD.
[SENSOR] button
• Receiver for remote control unit.
• Operating range: 30° in all directions.
[SRC] button
• Press the button to turn on the power.
Press and hold the button for 1 second or
longer to turn off the power.
• Switches the operation mode between radio
and CD/MP3 mode.
[ ] button
• Plays or pauses a CD while in the CD/MP3
mode.
• To enter various setting.
• Performs preset scan while in the radio mode.
When the button is pressed and held, auto
store is performed.
[A-M] button
• Press and hold the button for 1 second or
longer to switch the MAGNA BASS EX on/off.
• Use the button to switch to the audio mode
(bass/treble, balance/fader).
[å], [∂] buttons
• Selects a station while in the radio mode or
selects a track when listening to a CD/MP3.
• Press and hold the button for 1 second or
longer to switches the fast-forward/fast-
backward.
DB266MP 53
[ ]
[ ]
[
ROTARY
]
[
RELEASE
]
[
CD SLOT
]
[
Z
]
[
A-M
]
[
SRC
]
[
D
]
[
RPT
]
[
DIRECT
]
[
RDM
]
[
SCN
]
[
ISR
]
[
T
]
[
BND
]
[ ]
[
UP
]
[
DN
]
[
SENSOR
]
[ ]

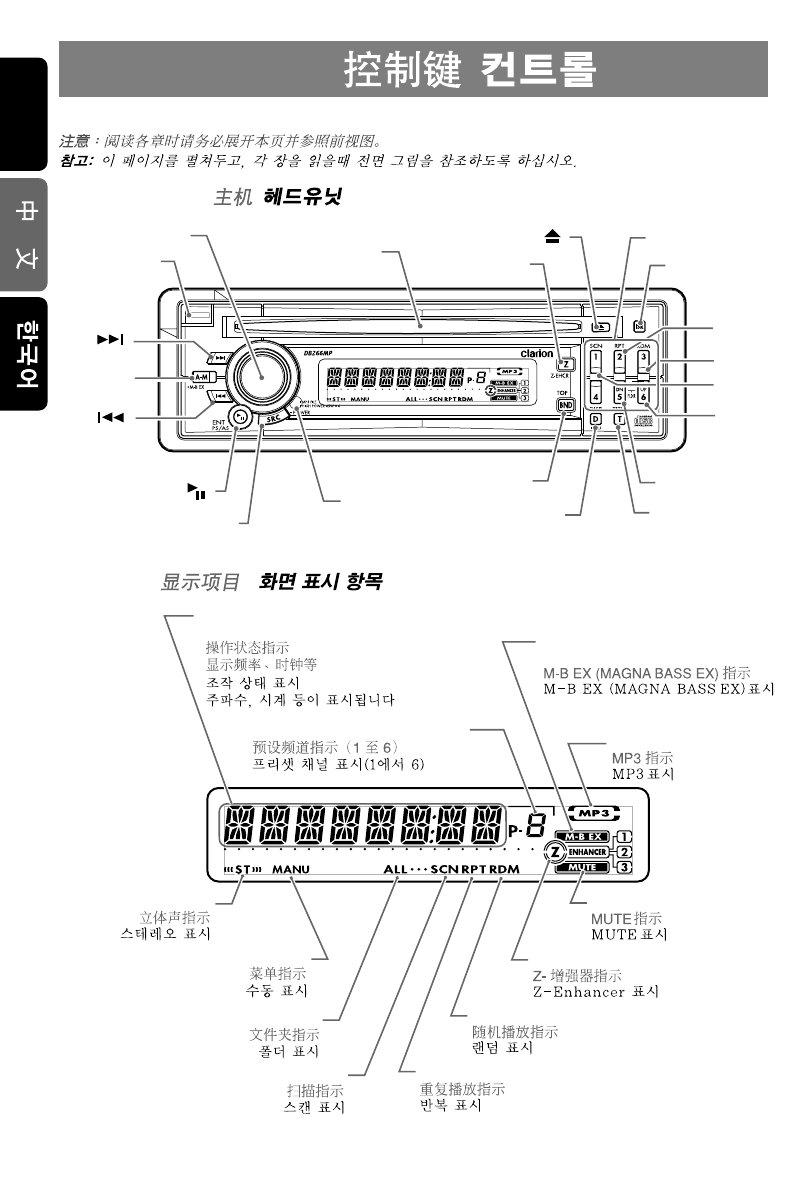

DISPLAY / /
SOURCE UNIT / /
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Operation status indication
Frequency, Clock, etc. are displays
Preset channel indication (1 to 6)
M-B EX (MAGNA BASS EX)
indication
MP3 indication
Stereo indication
Manual indication
Folder indication
Z-Enhancer indication
Random indication
Repeat indication
MUTE indication
Scan indication
