Cisco Aironet 1000 Series Lightweight Access Point Hardware Installation Guide
OL-9403-04
Chapter 1 Overview
Network Configuration Example
Figure 1-5 illustrates a typical Layer 2 network configuration. In a Layer 2 configuration, the controller
and the access points are on the same subnet.

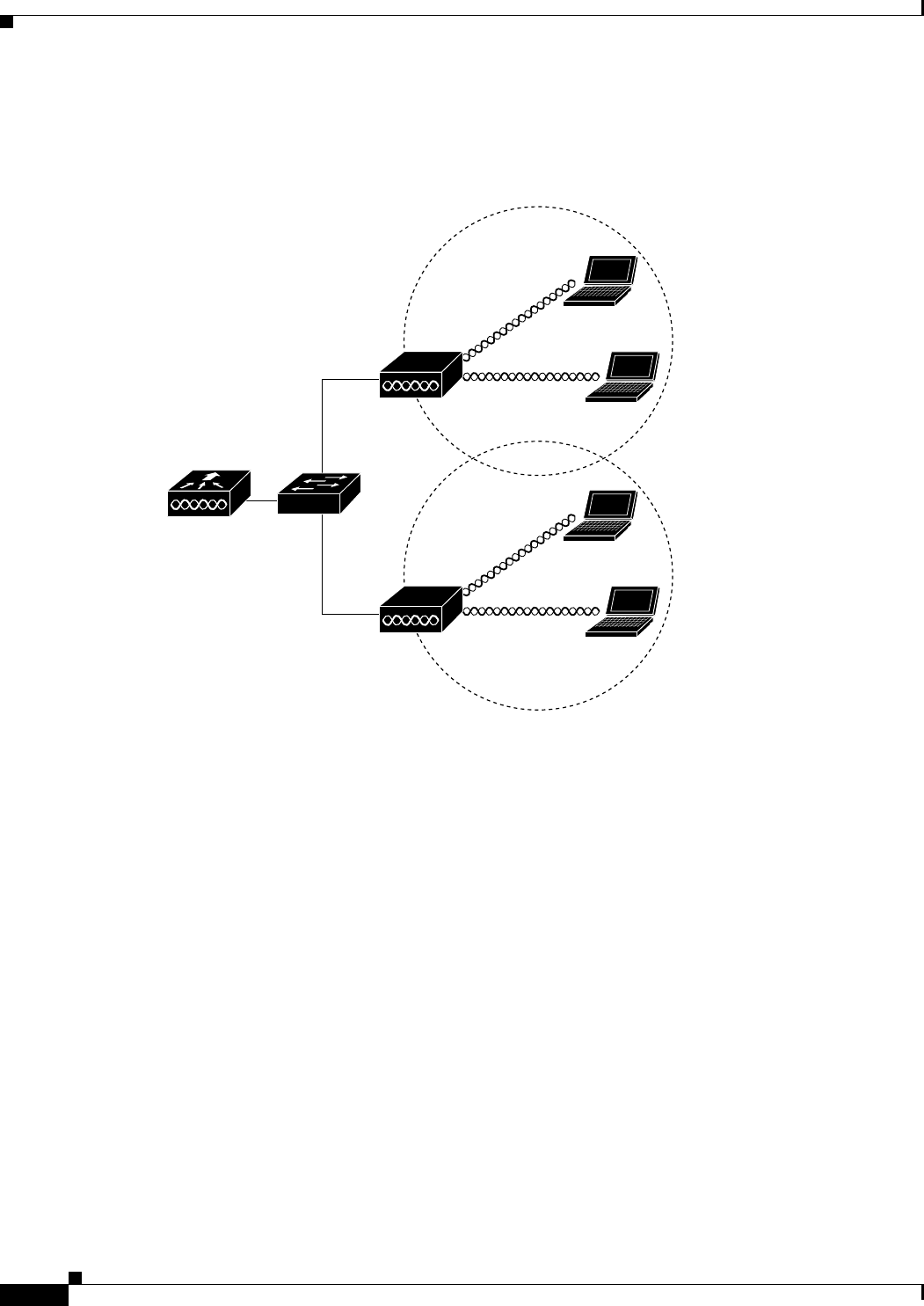

Figure 1-5 Typical Layer 2 Access Point Network Configuration Example
1
58084
LWAPP
LWAPP
