ASUS P5W DH Deluxe 2-35
6. ASUS EZ-Backup
Serial ATA connectors
(7-pin EZ_RAID1 [orange], EZ_RAID2 [orange])
These connectors are for the ASUS EZ-Backup feature. Connect Serial
ATA signal cables that support Serial ATA hard disk drives to build a RAID
0 or RAID 1 set easily. Refer to Chapter 5 for details on how to build an
EZ-Backup RAID set.
P5W DH DELUXE
®

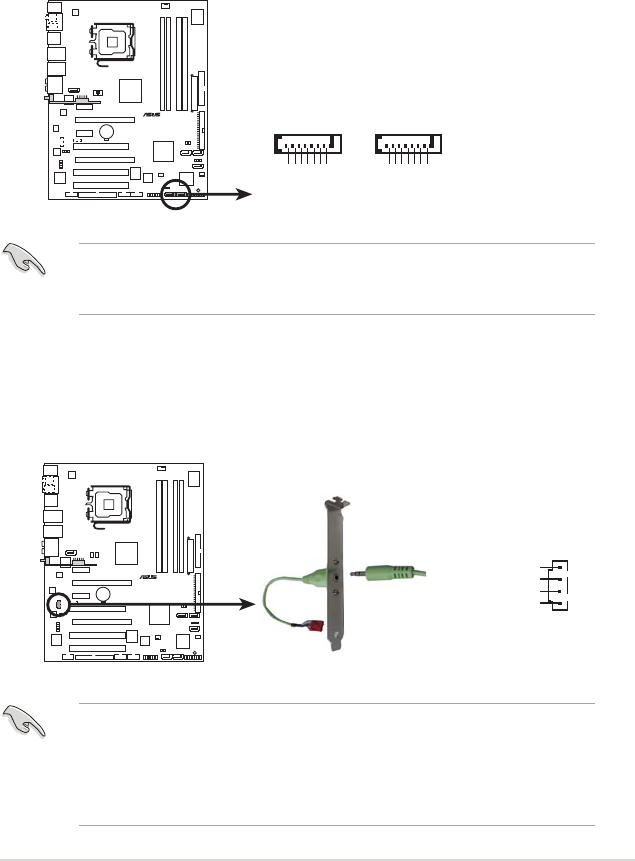

P5W DH DELUXE EZ_RAID connectors
EZ_RAID1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
EZ_RAID2
You may create a RAID 10 set through a cross-RAID conguration by installing
three hard disk drives on the ICH7R Serial ATA connectors, and one hard disk
drive on EZ_RAID1. See section “5.4.5 Cross-RAID conguration for details.
7. MP3-In connector (4-pin MP3IN [red])[red]))
This connector is for the MP3-In module that allows you to connect your
MP3 player to the speakers of the computer. For more information, refer to
the MP3-In Module Quick Installation Guide or the ASUS FrontLinker™ user
guide.
• The MP3-In module is bundled with the motherboard package if the
motherboard does not include the ASUS FrontLinker™. Connect the cable
to the MP3IN connector, and enjoy music from computer speakers even
when the PC is turned off.
• Do not plug the MP3-In cable into the Audio-In connector.
P5W DH DELUXE
®
P5W DH DELUXE MP3-In connector
MP3IN
Right Audio Channel
Left Audio Channel
Ground
Ground
