Chapter 1: Product introduction
1.8 Connectors

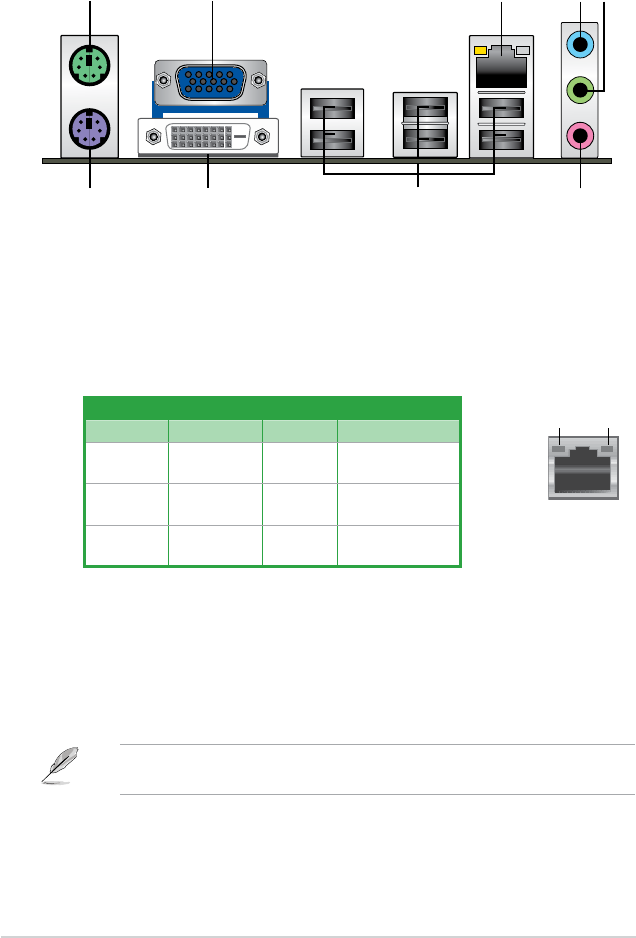

1.8.1 Rear panel connectors
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps
connection
ORANGE Linked ORANGE 100Mbps
connection
BLINKING Data activity GREEN 1Gbps
connection
1. PS/2 Mouse port (green).
This port is for a PS/2 mouse.
2. Video Graphics Adapter (VGA) port.
This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
3. LAN (RJ-45) port.
This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
LAN port
Speed
LED
Activity Link
LED
4. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
5. Line Out port (lime).
This port connects to a headphone or a speaker. In the 4, 6, and
8-channel congurations, the function of this port becomes Front Speaker Out.
6. Microphone port (pink).
This port connects to a microphone.
Refer to the audio conguration table for the function of the audio ports in 2, 4, 6, or 8-
channel conguration.
