APPLICATION: The Link-
800 is a professional active
full range speaker,
designed for effective use in
demanding professional
applications such as the
reproduction and
reinforcement of sound in
venues and applications as
diverse as from recording
studio to music store
playback, from video movie
playback to restaurant
FGM/BGM, discotheques,
airports, places of worship,
retail premises, restaurants
and public houses.

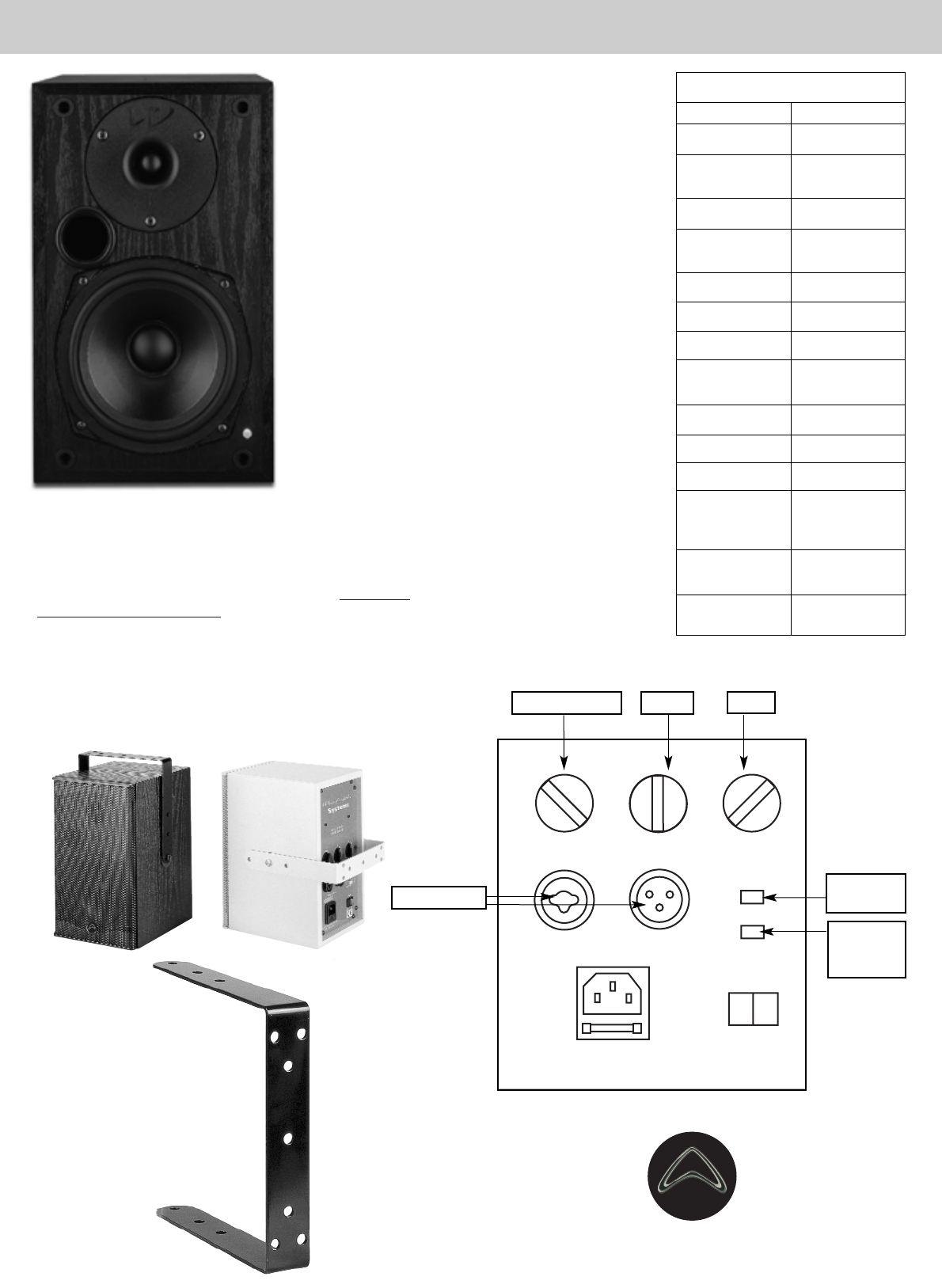

DESCRIPTION:The Link-
800 has one 5.5”” (140mm)
heavy-duty woofer drive
unit and one 1” (25mm) HF
unit. The Link 800 is a
single port acoustically-
efficient enclosure.
DEPLOYMENT: The Link-800 can be mounted in a vertical or
horizontal position. The Link-800 can be installed on the wall or
ceiling
using suitable ancillary commercial mounting
equipment.
IMPORTANT NOTE - See Warning Section on RIGGING •
SUSPENDING • MOUNTING before attempting to install
Wharfedale Pro Link-800.
VOLUME LEVEL CONTROL: Controls output level of the Link-800
AUTO SENSE ON/OFF SWITCH: Auto on/off sleep feature is
indicated through a front panel mounted LED. When engaged the
Link-800 senses when a signal is not present at the input and
places the unit in a standby
mode and the ‘blue’ indicator
LED on the front baffle board
goes out. Once a signal is
detected at the input the unit
moves into operation mode
and the LED activates. This
saves the power amp from
being constantly engaged
during periods when though
the unit is required to be
operational there will be
periods when no signal is
present.
HIGH AND LOW TONE
CONTROL: The Link-800
comes with adjustable tone
level contole with ±6dB on
Bass @100Hz and ±6dB on
treble @ 8kHz.
INPUT SELECTOR:
MICROPHONE INPUT
Gain of -50dB to + 24dB
LINE INPUT.
Gain of -4dB to + 24dB
Wharfedale Pro International Limited, IAG House, Sovereign Court,
Ermine Business Park, Huntingdon, Cambs, PE29 6XU, England
WHARFEDALEPRO website : www.wharfedalepro.com
The information in this manual is subject to change without notice.
All rights reserved © 2001Wharfedale Pro, IAG group
LINK-800 ACTIVE FULL RANGE SPEAKER
Link-800 SERIES • TECHNICAL
SPECIFICATION
MODEL
LF Driver
HF drive unit
HF driver protection
Power Handling
RMS/Music
Nominal Impedance
Sensitivity
SPL (peak)
Frequency
Response
Cabinet finish
Crossover point
Weight (single unit)
Connectors
Dimension (mm & ins)
H x V x D
Enclosure type
Link-800
5.5” x 1
1” x 1
mylar Dome
Protection lamp
60W
Optimum 120W
8 Ω
88dB @ 1m/2.83v
103dB
50Hz- 18kHz
Black, Red, Blue, White
3.0kHz
4.68 Kg / 10.32lbs
XLR /1/4”jack x 1
XLR /Male x 1
270 x 166 x 178
10.6 x 6.5 x 7.0
2 way / single port
0
0
VOLUME TREBLE BASS
PARALLEL INPUT
AUTO POWER
INPUT SELECT
AC INPUT: ~230V/50HZ
FUSE: 0.5A/250V
OFF
ON
A steel bracket is
supplied with each
LINK 800 loudspeaker
Volume Control
Bass
Treble
Parallel inputs
Auto Sense
On/Off
Input
Select
Mic/Line
LINK 800 REAR PANEL LAYOUT
