FN-6 CROSSOVER
FN-6
-2dB 0 dB
IN
+ + +- -
-2dB 0 dB
- -- -
Woofer Midrange Tweeter
+

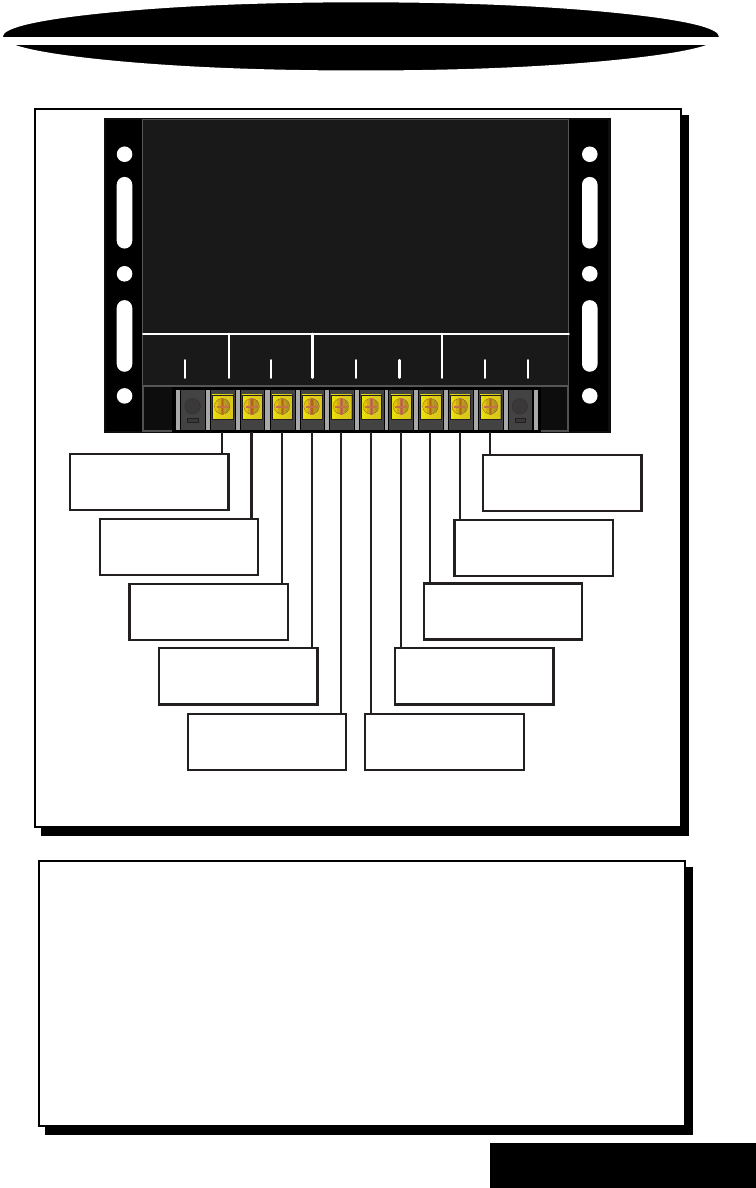

Connect to the amplifier
(+) POSITIVE
speaker output
Connect to the amplifier
(-) NEGATIVE
speaker output
Connect to the Midbass
(-) NEGATIVE
speaker terminal
Connect to the Midbass
(+) POSITIVE
speaker terminal
Connect to the Midrange
(+) POSITIVE
speaker terminal
Connect to the Tweeter
(+) POSITIVE
speaker terminal
Connect to the Tweeter
(-) NEGATIVE speaker
terminal [-2dB attenuation]
Connect to the Tweeter
(-) NEGATIVE speaker
terminal [no attenuation]
Connect to the Midrange
(-) NEGATIVE speaker
terminal [no attenuation]
Connect to the Midrange
(-) NEGATIVE speaker
terminal [-2dB attenuation]
FN-6 CROSSOVER
Make sure all connections are tight to prevent electrical shorts.
SPECIFICATIONS
Mounting Length 3.985”
Mounting Width 6.325”
Mounting Depth 1.750”
FREQUENCIES
Tweeter High Pass 4 kHz
Midrange Band Pass 2.2 kHz - 900 Hz
Woofer Low Pass 900 Hz
