SPL 45 Wiring Diagram

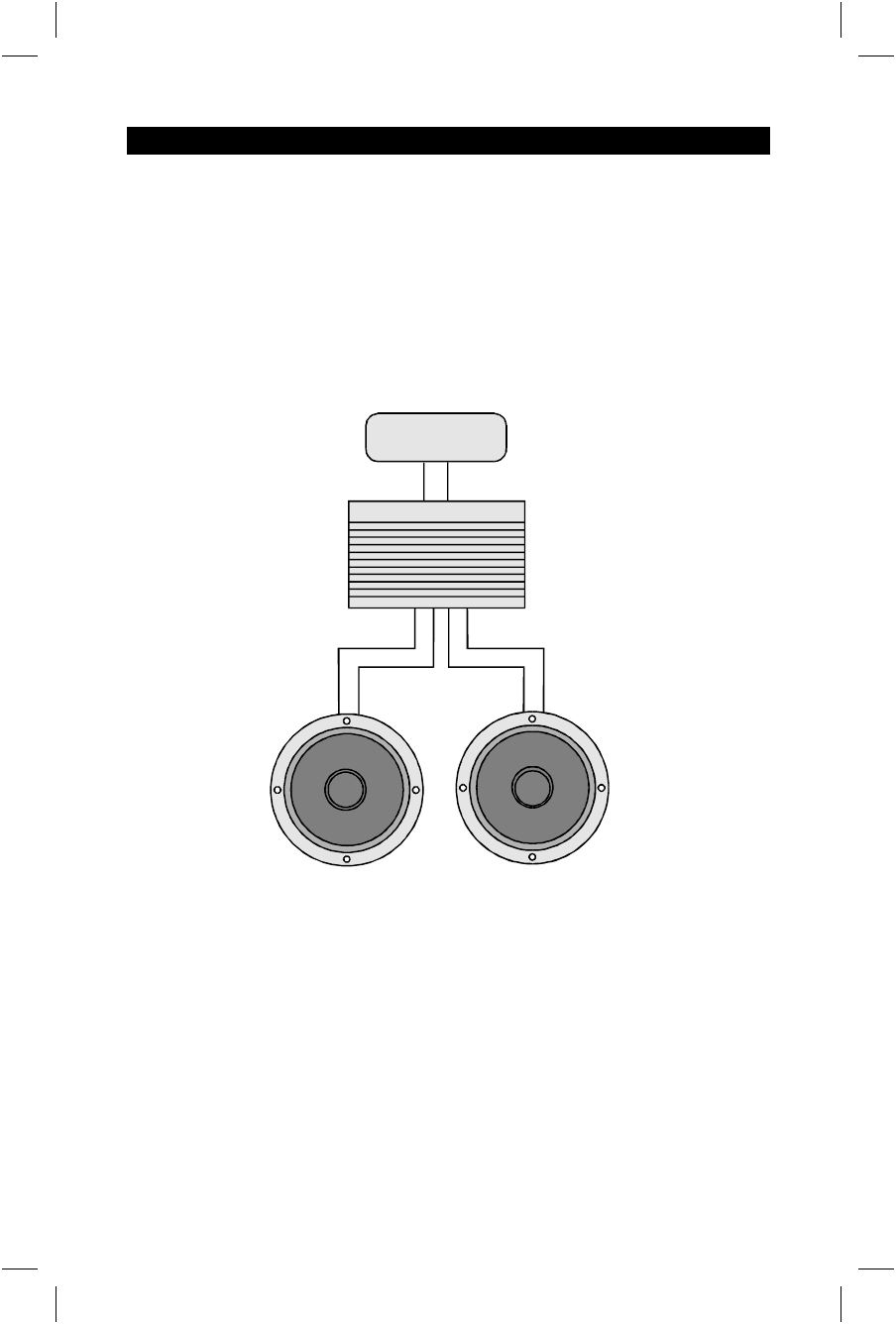

The figure below shows wiring for the SPL 45 speaker. It is
important to make sure that all connections are in phase; that
is positive (+) is connected to positive (+), and negative (-) is
connected to negative (-) since an out-of-phase connection
will cause a dislocated image and low bass output. We
suggest using premium cable. The connectors provided with
this system will accommodate wire from 12 gauge to 16
gauge.
WIRING
