Antenna Aiming feature found on the XTR receiver.

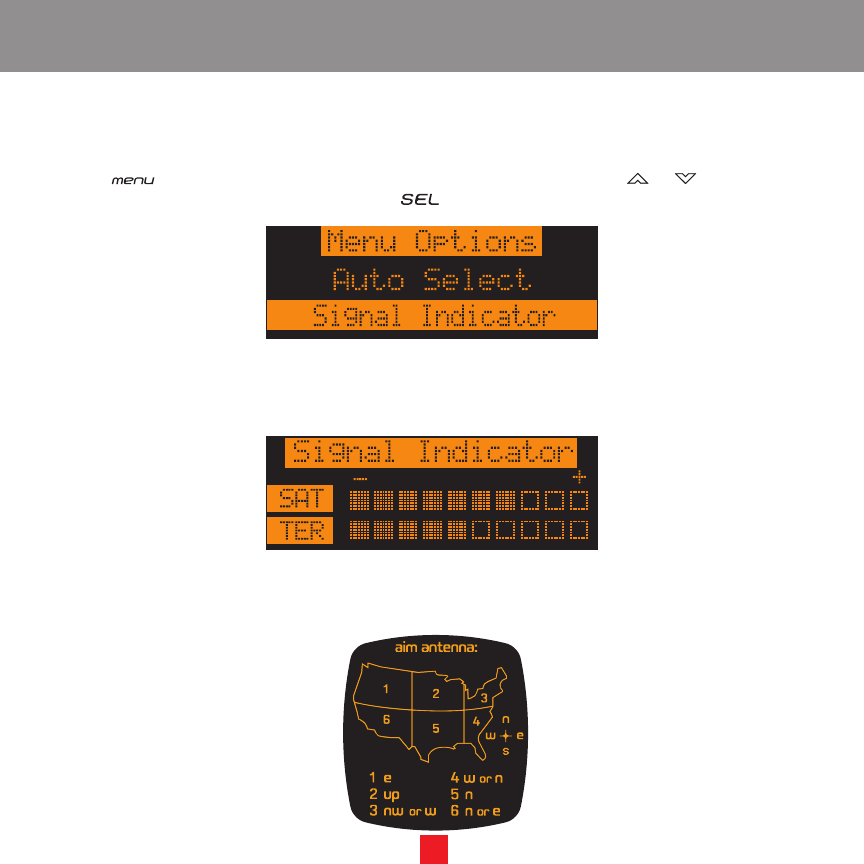

To access the Antenna Aiming Feature:
Press the button on the Sirius Satellite Radio Receiver’s key pad. Press the or button until the
Antenna Aiming selection is highlighted and press button.
Upon entering this option, two 10-segment horizontal bar graphs are displayed with a (-) sign to the left and a
(+) sign to the right. One is label “SAT” (satellite signal strength) and the other “TER” (terrestrial signal
strength). The current setting is indicated on the bar graphs. Rotate the Antenna to a position that provides the
best reception. (See Sirius Satellite Radio map bellow).
Sirius Satellite Radio Map
Due to the paths of Sirius satellites over the US, the best location for the antenna in your home depends on
where you live. Use the map below as a general placement guideline.
Area 1 : Place the antenna at an EAST -
facing window.
Area 2 : Place the antenna OUTSIDE,
away from any overhead obstructions.
Area 3 : Place the antenna at a NORTH
WEST - or WEST - facing window.
Area 4 : Place the antenna at a WEST -
or NORTH - facing window.
Area 5 : Place the antenna at a NORTH -
facing window.
Area 6 : Place the antenna at a NORTH -
or EAST - facing window.
