SIRSNY1C Installation Guide
A
U
D
IO
IN
Wiring and Cable Connections
C. UniLink Input Connector
Connect to optional Sony audio
equipment like CD Changers. See
“System Connection Examples” for
more specific details.
D. Power Harness Connector
After the wiring connections are
complete, plug the wiring harness into
the connector. Make sure to insert
firmly to lock the connector in place.
E. Audio Out
Use the supplied RCA cables to
connect to the bus-in audio inputs of
the Sony headunit.
F. Audio In
Connect to audio output of optional
Sony audio equipment like CD
Changers.
A
B
C
D E
F

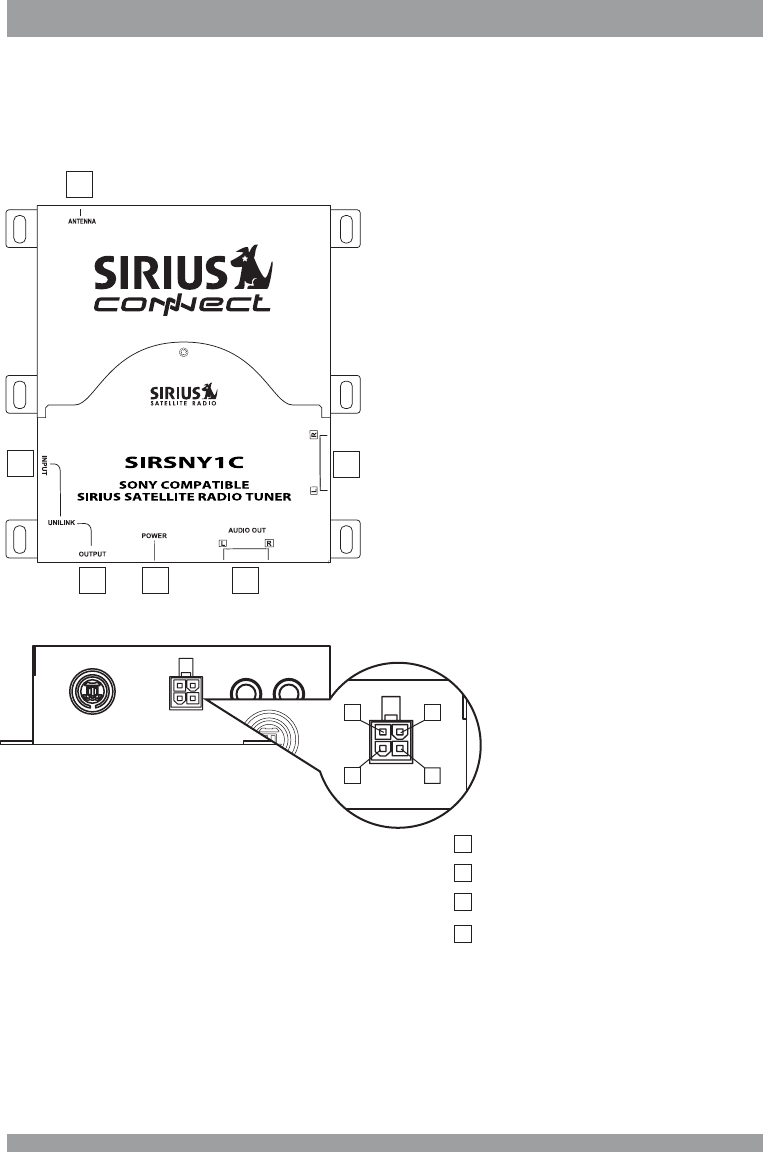

A. Antenna Input
Connect the right-angle SMB
connector from the antenna. Push
firmly to attach.
B. UniLink Output Connector
Use the supplied UniLink cable to
connect to the Sony Headunit. See
“System Connection Examples” for
more specific details.
Open
Battery (+)
Chassis Ground (–)
Open
2
3
4
1
