a. In a major city, where Sirius ground repeaters
are present, you can usually place the
antenna away from a window and still achieve
the desired results.
b. You can also place the antenna outside (on the
roof structure), provided it is clear of any
overhead obstructions. Because of the orbiting
characteristics of the Sirius Satellites, the
strength of the received signal may change over
5. Installing/Positioning the Antenna
For best reception, the supplied antenna should
be placed near a window if in the house or, if
outdoors, in an open area and as high as possible;
some repositioning may be required to achieve
optimum results. The following guidelines are
recommended:
-7-
2.After making sure the connectors are properly
lined up, gently press down on the shuttle to mate
the connectors together. The shuttle should now be
nestled securely in the Boom Box compartment.
Lower the PNP cover into position over the Shuttle;
This will prevent accidental Shuttle disconnect.
Apply power to the SIR-BB3 by pressing the Power
ON/OFF button; the LED indicator lights green. If
the Shuttle does not turn on at the same time, press
the red Power On/Off button in the upper left corner
of the Shuttle front panel.
4.Removing the Shuttle From the SIR-BB3
Press the EJECT button on top of the Boom Box to
raise the cover. Gently grasp the Shuttle from the top
and pull straight up to disengage.

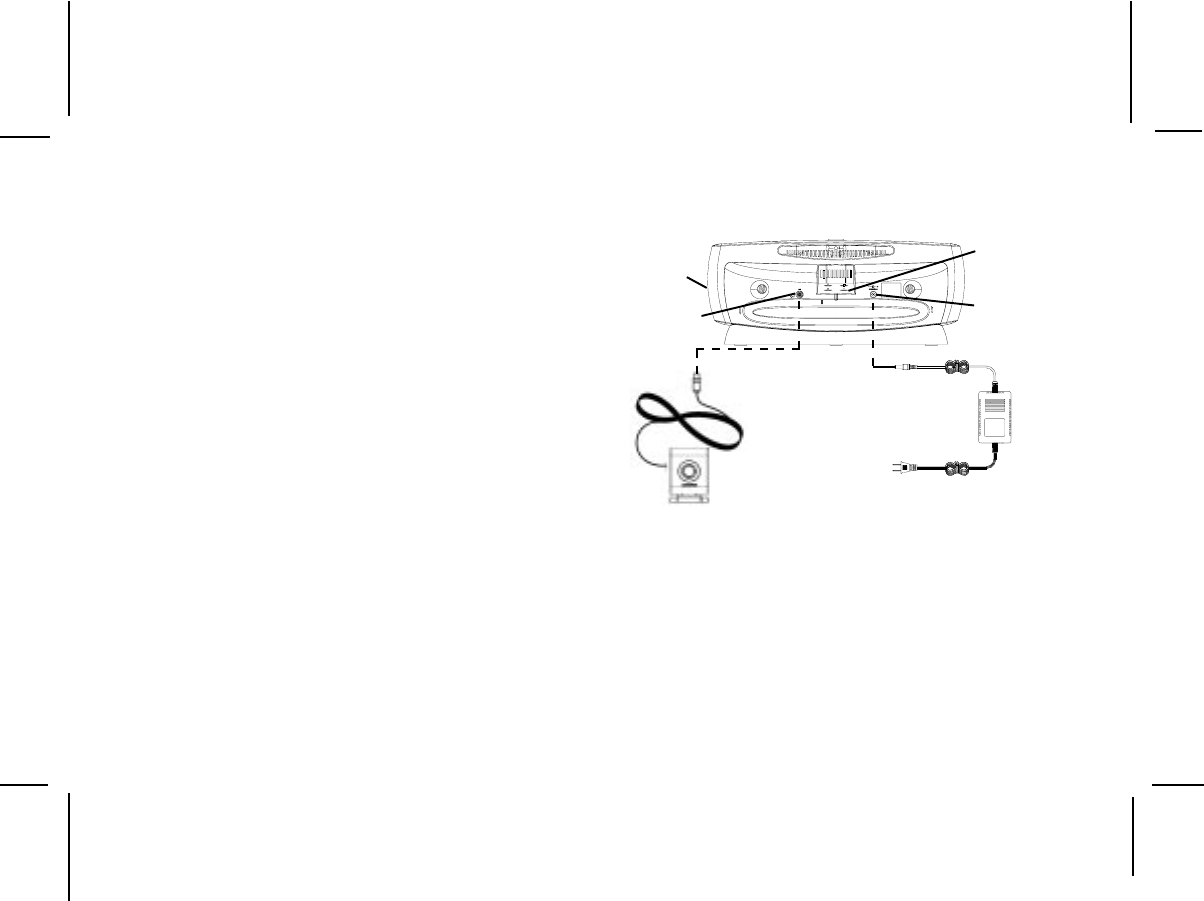

Interconnect Diagram
DC POWER
ADAPTER
(DC 12V 2.2A)
SHUTTLE
BOOM BOX
SIR-BB3
TO AC WALL
OUTLET
SHUTTLE
ANTENNA
ANTENNA
JACK (ANT)
DC POWER
ADAPTER
JACK
ANTENNA
STORAGE
SHELF
