Manual Tuning - DAB
Manual tuning allows you to tune directly to the various DAB Band III
channels. UK DAB stations located in the range 11B to 12D.

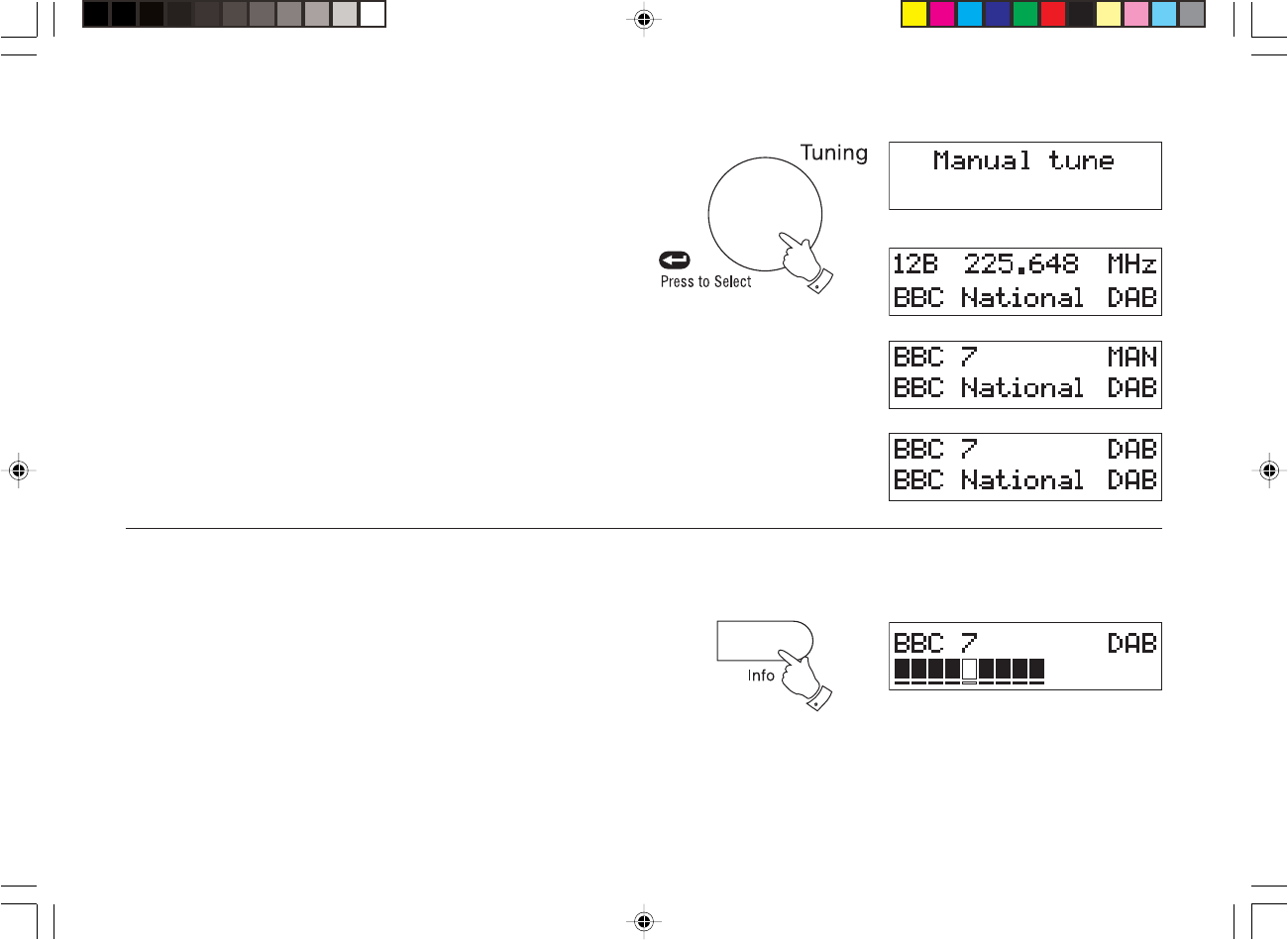

1. Press and hold in the Tuning control until the display shows
"Manual tune".
2. Rotate the Tuning control to select the required DAB channel.
3. Press and release the Tuning control to select the channel.
4. Rotate the Tuning control to select the stations contained within
the Multiplex (group of stations) for the selected DAB channel.
5. Press and release the Tuning control to return to normal tuning
mode.
Signal strength display - DAB
1. Repeatedly press and release the Info button until the lower line
of the display shows signal strength.
2. Position your radio and carefully angle the telescopic aerial for best
reception using the signal strength display as a guide. Move your
radio around and position so as to give maximum number of black
rectangles on signal strength display.
3. The clear unfilled rectangle indicates minimum signal level required
for satisfactory reception.
