Filter
Top Products
Acoustical
(each loudspeaker)
Coverage
Crossover
Transducers
Audio Input
Amplifiers
AC-Power
Physical
Notes
14.00"
20.75"
14.00"
16.42"
15.54"
8.00"
13.20"
8.50"
9.20"
8.88"
2.0"

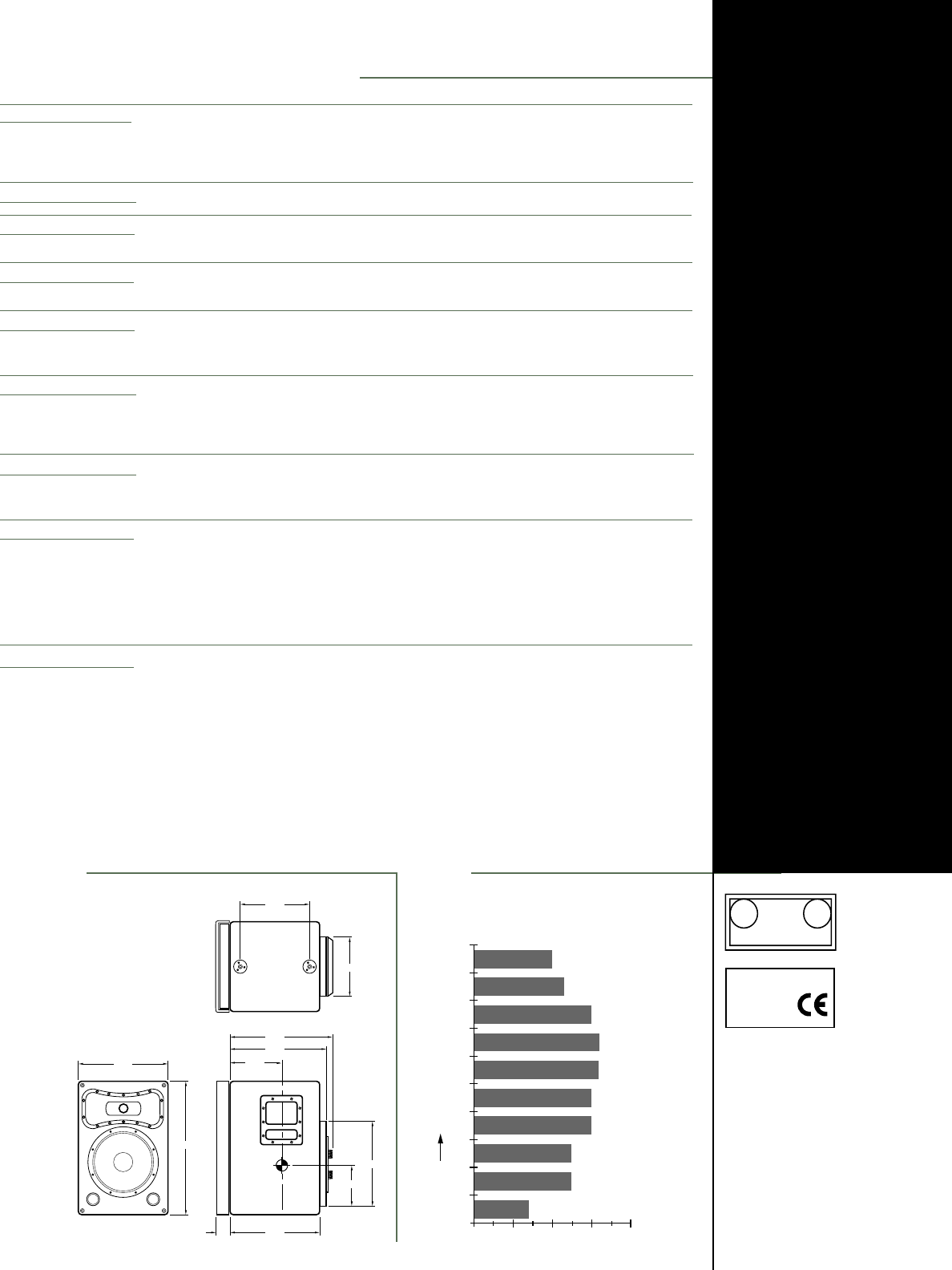

PHYSICAL DIMENSIONS CONTINUOUS OUTPUT
UPL-1 SPECIFICATIONS
Frequency Response
1
Phase Response
Maximum SPL
Dynamic Range
(-6 dB points)
Low Frequency
High Frequency
Type
Connector
Nominal Input Level
Type
Burst Capability (Low Frequency)
Burst Capability (High Frequency)
THD, IM, TIM
Dimensions
Weight
Finish
Protective Grill
Rigging
±2 dB from 50 Hz to 18 kHz
2
-3 dB at 32 Hz and 20 kHz
124 dB peak @ 1 meter
> 100 dB
90° H; 40° V
Optimized pole-zero filter combinations to complement transducer
response and to achieve acoustical transparency and flat phase
3
10” diameter MS-15 cone (2)
1” titanium dome horn driver (1” voice coil)
4
10kΩ impedance, electronically balanced
XLR (A-3) female
+4 dBu or -10 dBv, switchable
Complementary power MOSFET output stages
200 watts
100 watts
< .02 %
3-pin IEC 320 male inlet. Voltage selector switch for 100/120/220/
240 VAC, 50 or 60 Hz (accepts voltages from
90 to 260 VAC), 175 W maximum.
14" W x 20
3
⁄4" H x 14" D (+ 2
1
⁄
2
" additional depth for
amplifier chassis and 2" for grill with foam)
70 lbs (32 kg)
Black textured
Perforated metal screen, grey foam covering
3
/
8
"-16 nut plates, top and bottom
1. Subject to room loading. Specified for 8 feet actual
distance between UPL-1 cabinet and a single boundary
surface, measured with one-third octave frequency
resolution in fixed ISO bands.
2. Specified with grill removed. Response tolerance ±3 dB
with grill screen and foam in place.
3. U.S. patent #5,185,801 (additional patent pending).
4. U.S. patent #4,152,552.
* Unless otherwise specified, all acoustical measurements
are performed at 1 meter from front baffle on highfrequency
horn axis. Acoustical decibels are specified re 20 µPa.
ALL UNITS IN INCHES
