Contents

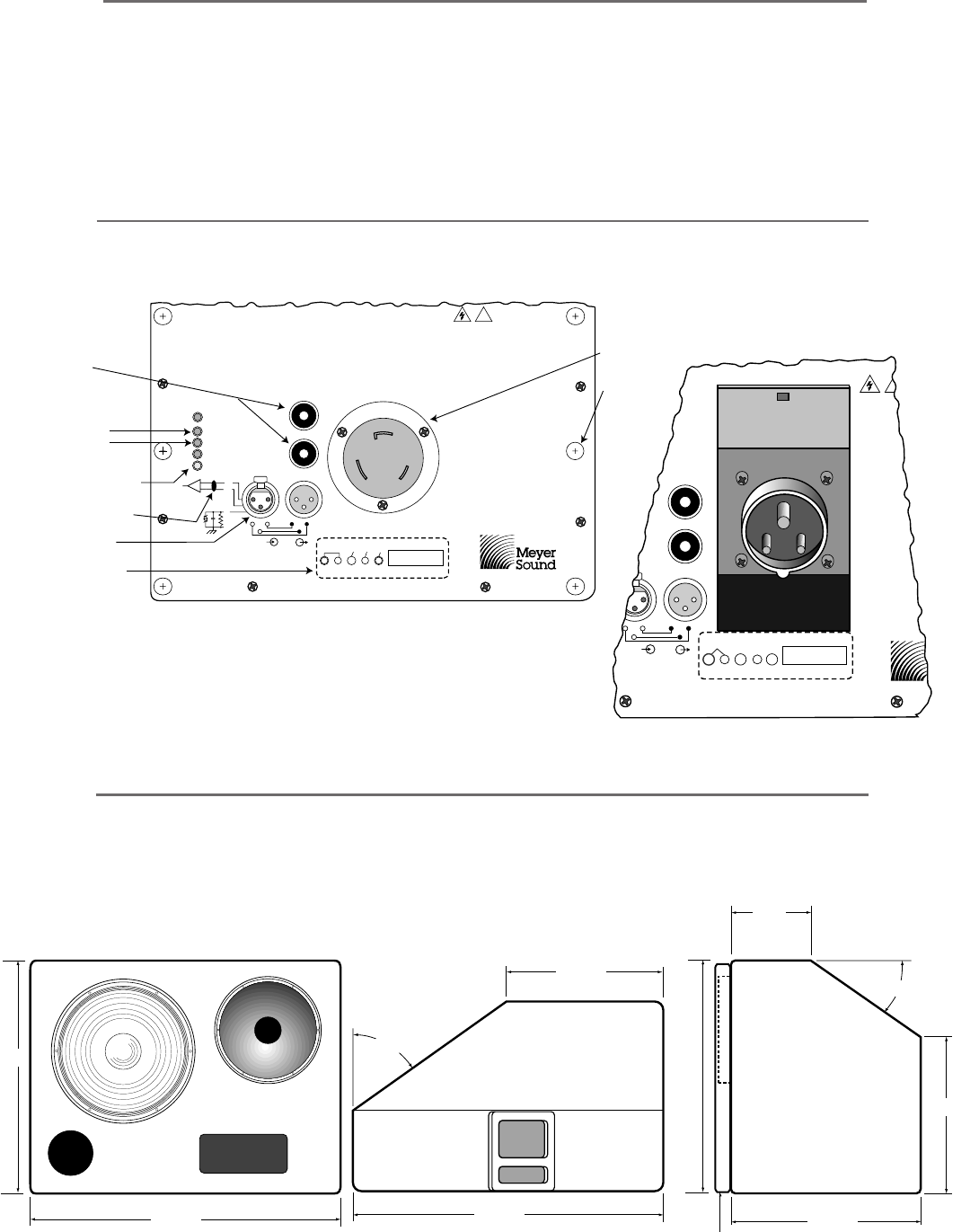

Controls and Connectors
European User Panel with
IEC 309 connector
Dimensions
Front Side Top
All units in inches
Controls and Connectors .................................. 3
Dimensions ........................................................ 3
AC Power ........................................................... 4
Audio Input ........................................................ 5
Limiting and Protection Circuitry ..................... 6
Example Applications ....................................... 7
Verifying Polarity ............................................... 8
Safety Summary................................................ 9
Specifications .................................................. 10
Rear User Panel shown with the optional
Remote Monitoring System (RMS) panel
18.0
24.0
12.1
55°
24.0
6.2
18.0
35°
12.1
14.7
Grill shown here
is 1.5" thick
ATENCIÓN
:
ACCESO INTERNO SOLO
AUTORIZADO A PERSONAL TÉCNICO CALIFICADO
ACHTUNG
:
GEHÄUSE NICHT ÖFFNEN WARTUNG
UND REPARATUR NUR DURCH ELEKTROFACHKRÄFTE
ATTENTION
:
ENTRETIEN ET REPARATIONS
INTERNES NE SONT AUTORISEES QU'AU
PERSONNEL TECHNIQUE QUALIFIÉ
UK WARNING
:
THIS APPARATUS MUST BE EARTHED.
NO OPERATOR SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL
WARNINGS:
THIS PRODUCT MUST BE GROUNDED
This surface may reach high temperatures while in use.
To ensure proper operation, allow at least 6 inches
clearance from this surface and adequate ventilation.
To reduce the risk of electric shock do not remove cover.
No operator serviceable parts inside.
Refer servicing to qualified personnel.
To reduce the risk of fire or electric shock
do not expose this appliance to rain or moisture.
!
Meyer Sound, Berkeley, CA. USA
1
2
3
1
3
2
Loop
Input
PUSH
Active / Speaker Fault
2 +
3 +
10K
Ω
Balanced
Input Polarity
LO Limit
HI Limit
Network
Service
Wink
Reset
Activity
Remote Monitoring System
PSM-2
Earth / Chassis
1
Case
220K
Ω
ESD
P
U
S
H
R
E
-
C
I
R
K
-
I
T
P
U
S
H
R
E
-
C
I
R
K
-
I
T
Mains circuit
breakers
Signal input and
loop connectors
Power LED (green/red)
Input polarity switch
Low Limit (red)
High Limit (red)
Tie-wrap anchor
Mains AC inlet
Remote Monitoring
System panel
(if RMS is installed)
95-125V
~
50-60Hz
1400W RMS MAX
208-235V
~
50-60Hz
1400W RMS MAX
Auto-Voltage Select
