Operating Instructions
Meyer Sound Laboratories, Inc.
2832 San Pablo Avenue
Berkeley, CA 94702
MSL-5
Loudspeaker
Specifications
Acoustical MSL-5 / M-5 System
1
(two 30
o
sections)
Frequency Response
2
100 Hz - 16 kHz ±4 dB
Maximum SPL at 100 feet
Continuous 110 dB
Peak 120 dB
HF Coverage
Horizontal 60 degrees
Vertical 70 degrees
MSL-5 Loudspeaker (one 30
o
section)
Driver Complement
Low Frequency Drivers (2) MS-12 12-inch cone drivers
High Frequency Drivers (3) MS-2001A 2-inch throat (4" diaphragm)
compression drivers
HF DC Protection 50 µf polypropylene capacitor
Enclosure Vented, horn-loaded multi-ply hardwood
Finish Black textured
Protective Grill Two piece hex perforated metal, powder
coated, charcoal-grey foam covering
Rigging 12 points, offset pivoting lift rings mounted on
internal steel framing

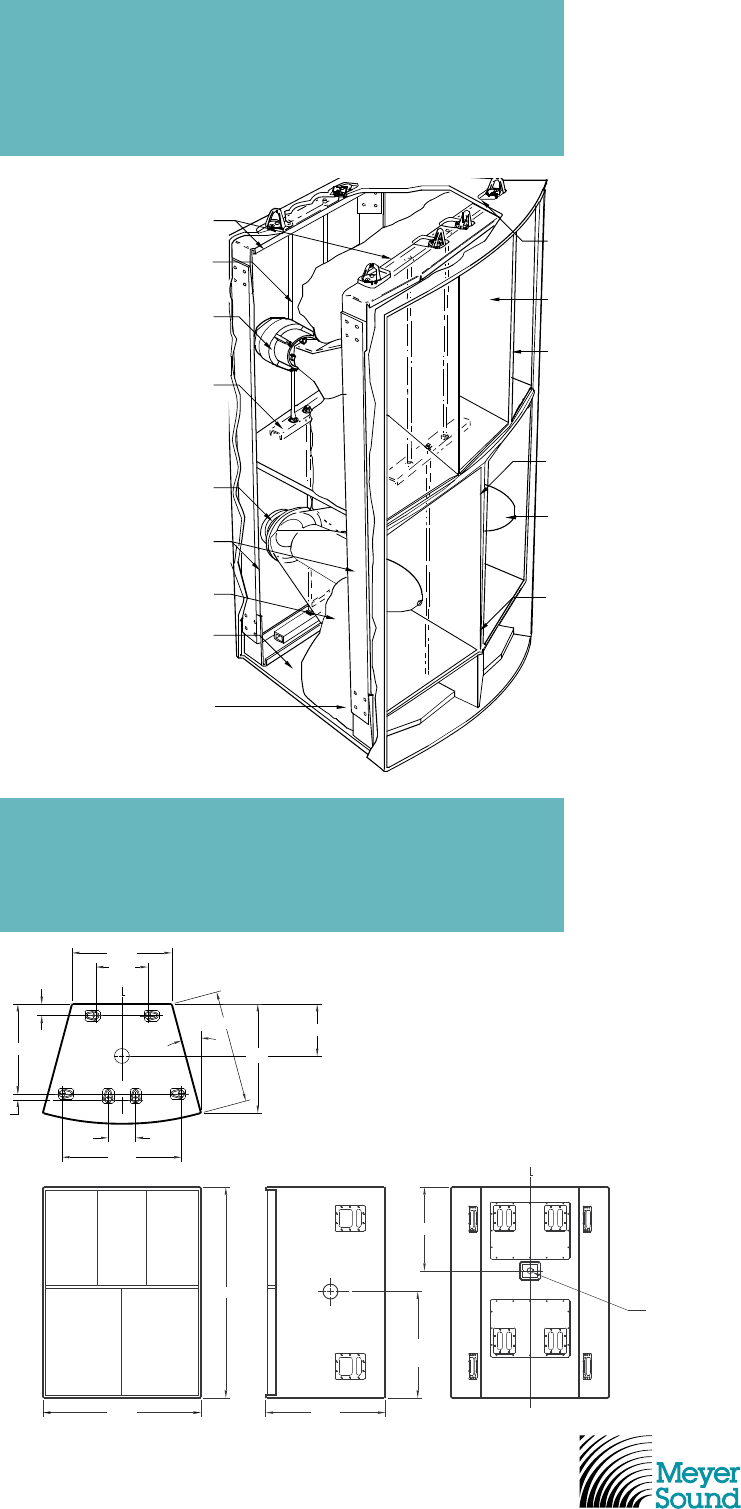

Dimensions 42.52" W x 56.75" H x 32.28" D
Weight 480 lbs. (218.2 kg)
Connector EP-4 (male),
EP-5 (male, Europe only)
Pyle National (optional)
Notes:
1. Acoustical specifications are given for the minimum configuration of two 30-degree sections.
2. Measured 5 meters on axis, free-field conditions, pink noise input, in third-octave bands.
05.022.017.01 A
© 1994, Meyer Sound
