Program Mode
Programming Note:
If 30 seconds are allowed to pass or either the IN or
the OUT button is pressed during programming modes, the unit will set the
last information entered—the display will stop flashing and return to
normal time-date readings

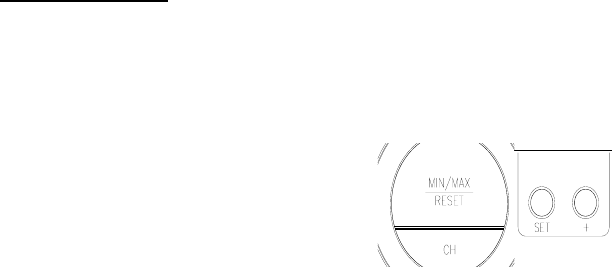

A. Function Keys
There are four function buttons on the
WS-7049U. The two buttons on the
front are labeled “MIN/MAX/RESET”
and “CH”. The two buttons on the
back are labeled “SET” and “+”.
B. Time Setting
1. Press and hold the “SET” button for 3 seconds
2. The hour digit will flash.
3. Press and release the “+” button to change the hour. Press
the “+” button once and the hour will increase by one, twice
and the hour will increase by two, etc.
4. Press and release the “SET” button to confirm the hour
setting and to advance to the minute setting mode.
5. The minute digits should be flashing.
6. Press and release the "+” button to change the minutes—
increasing the minutes by increments of 1 with each press of
the “+” button.
7. Press and release the “SET” button to confirm the minutes
and complete the time setting.
