C. Crane CCRadio Portable Radio User Manual



Page 9
INSTALLING THE BATTERIES
BATTERY REPLACEMENT
1) Position the radio face down on a soft surface to protect it.
2) Remove the battery compartment cover.

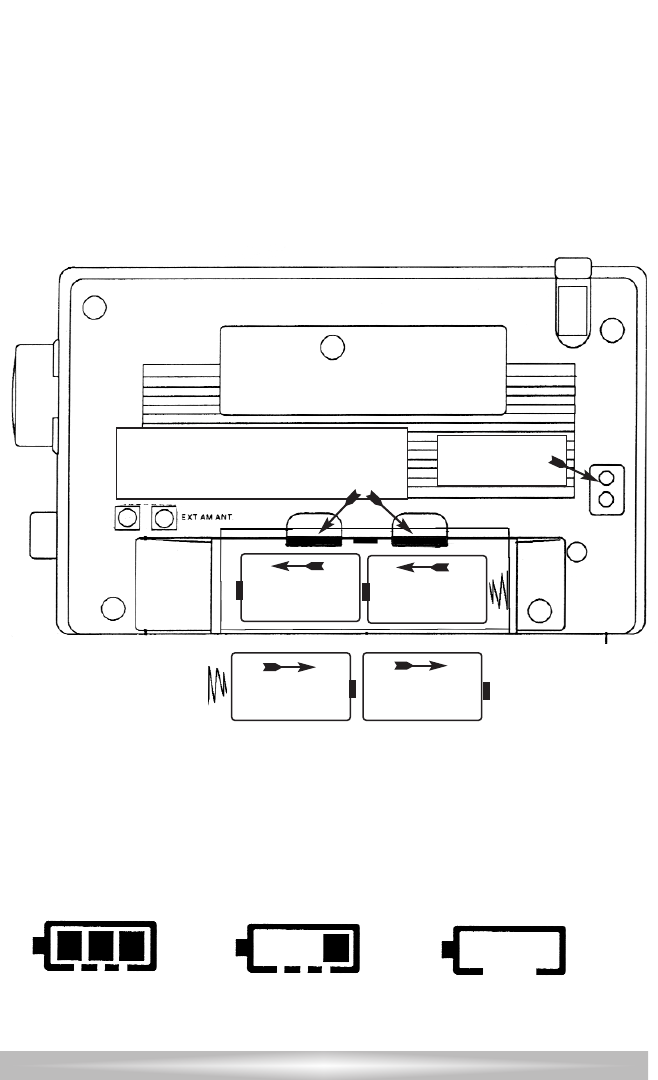

3) Insert the (4) “D” cell batteries into the compartment as indicated in
the drawing below. Be sure the negative (-) end is against the
spring. Refer to the drawing below to insure correct installation of
your batteries.
4) Replace the battery cover. You are now ready to operate your radio.
The battery indicator will display the battery level for approximately
seven seconds after the radio is switched on. After removing dead bat-
teries for replacement, you have approximately three minutes to replace
the batteries before your clock and memory information will be lost (if
the radio is not plugged in).
This symbol means
the batteries are full.
This flashing symbol means
the batteries need replacing.
First Battery
Second
Battery
Fourth
Battery
Third Battery
This symbol means
batteries are low.
Remove battery cover by pressing
both clips at the same time towards
the bottom of the radio.
AC power cord
plugs in here.
