VP14MB Loudspeaker Specifications
Size 8" (203mm)
Magnet Weight 10oz (142g) Ceramic
V.C. Diameter 1" (25mm)
Sensitivity 96dB 1W/1M
Watts (program) 15
Frequency Response 50Hz - 15kHz
VP14ENC Specifications
Slope 9.5º
Width 11.75 (298mm)
Height 11.40" (290mm)
Projects, Top 5.29" (134mm)
Projects, Bottom 2.88" (73mm)
Weight 5.5lbs (2.49kg)
VP14MB Transformer Specifications
Primary Volts 25/70.7
Secondary 8Ω
Core Size
1
⁄2" x
5
⁄8" (13mm x 16mm)
Taps
1
⁄4,
1
⁄2, 1, 2, & 4
Leads Color Coded, Stripped & Tinned
Transformer Setup
Tap Wattage 25V 70.7V
1
⁄4 Blue Red
1
⁄2 Brown White
1 Green Yellow
2 Violet Blue
4 Orange Brown
Common Black Black

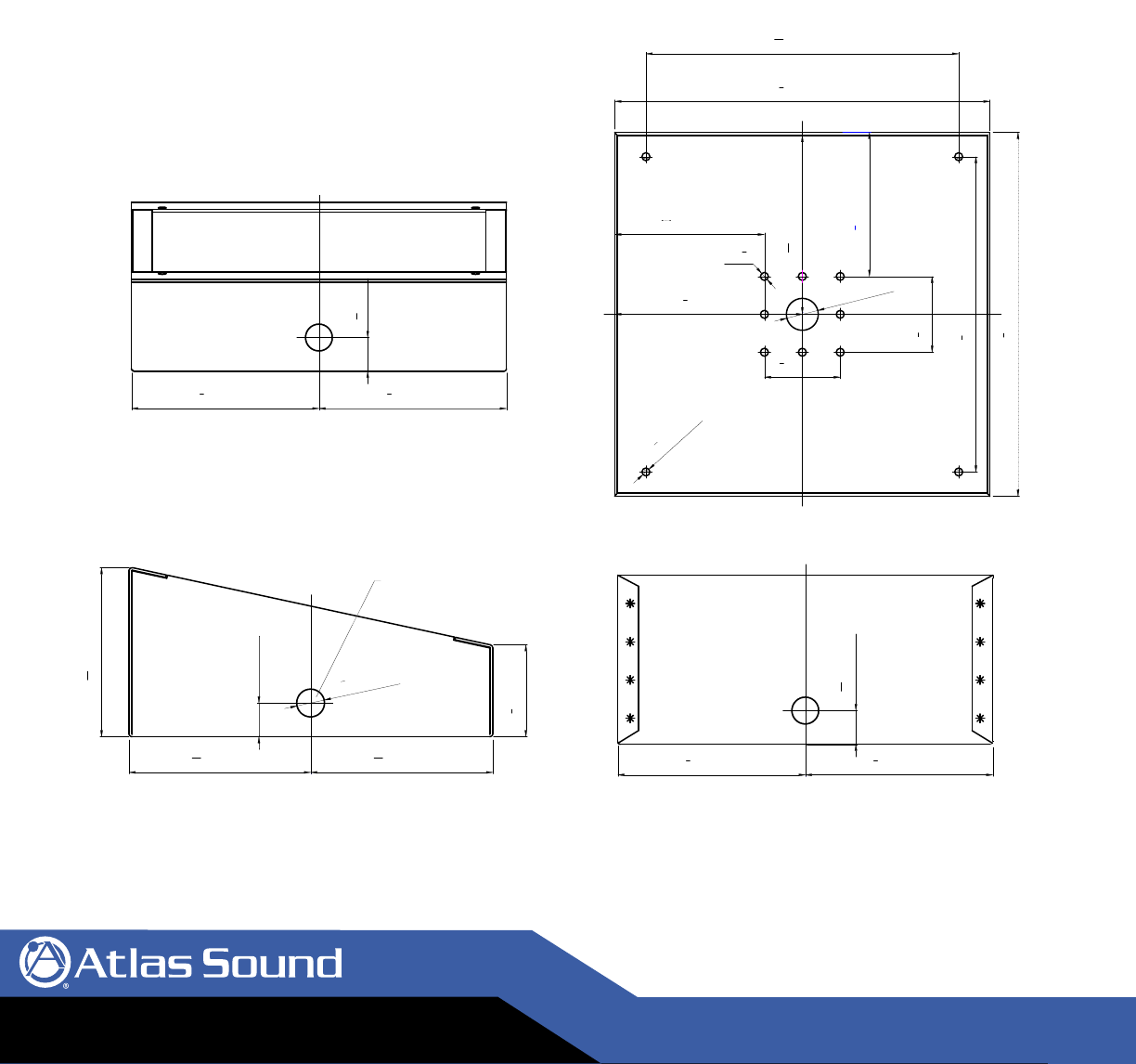

VP14ENC Knock-Out Mounting Hole Locations
