Specifications subject to change without notice
© 2001 Atlas Sound LP Printed in U.S.A. 000501 SL6-1181
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A. / TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
SPEAKER BAFFLE XFMR MOUNTS ENCLOSURE**
MODEL TYPE TYPE COLOR VOLTAGE (ORDER SEPARATELY)
UHT70(25)C-U51-8 U51-8 White U95-8, U96-8
*UHT70(25)C-U61-8W U61-8(W) Brushed Aluminum or White U95-8, U96-8
*UHT70(25)C-U62-8 U62-8 White U95-8, U96-8
UHT70(25)C-U161-8 Single U161-8 White U198-8, USE175-4
*UHT70(25)C-U164-8 Voice U164-8 White 70.7V(25V) U191-78
*UHT70(25)C-U410-8 Coil U410-8 Brushed Aluminum or White Not Required
*UHT70(25)C-UG22-8 UG22-8 Off White Matte U95-8, U96-8
*UHT70(25)C-UVP161-R8 UVP161-R8 White U193-8
*UHT70(25)C-UT51-8 UT51-8 White UT95-8
*UHT70(25)C-UT61-8W UT61-8(W) Brushed Aluminum or White UT95-8
*UHT70(25)C-UT161-8 UT161-8 White UT198-8, USE175-4
*UHT70(25)C-UT164-8 UT164-8 White UT191-78
UKT70(25)-2-U51-8 Dual U51-8 White U95-8, U96-8
*UKT70(25)-2-U62-8 Voice U62-8 White 70.7V(25V) U95-8, U96-8
UKT70(25)-2-U161-8 Coil U161-8 White U198-8, USE175-4
*UKT70(25)-2-UM222W UM222(W) Brushed Aluminum or White U95-8, U96-8

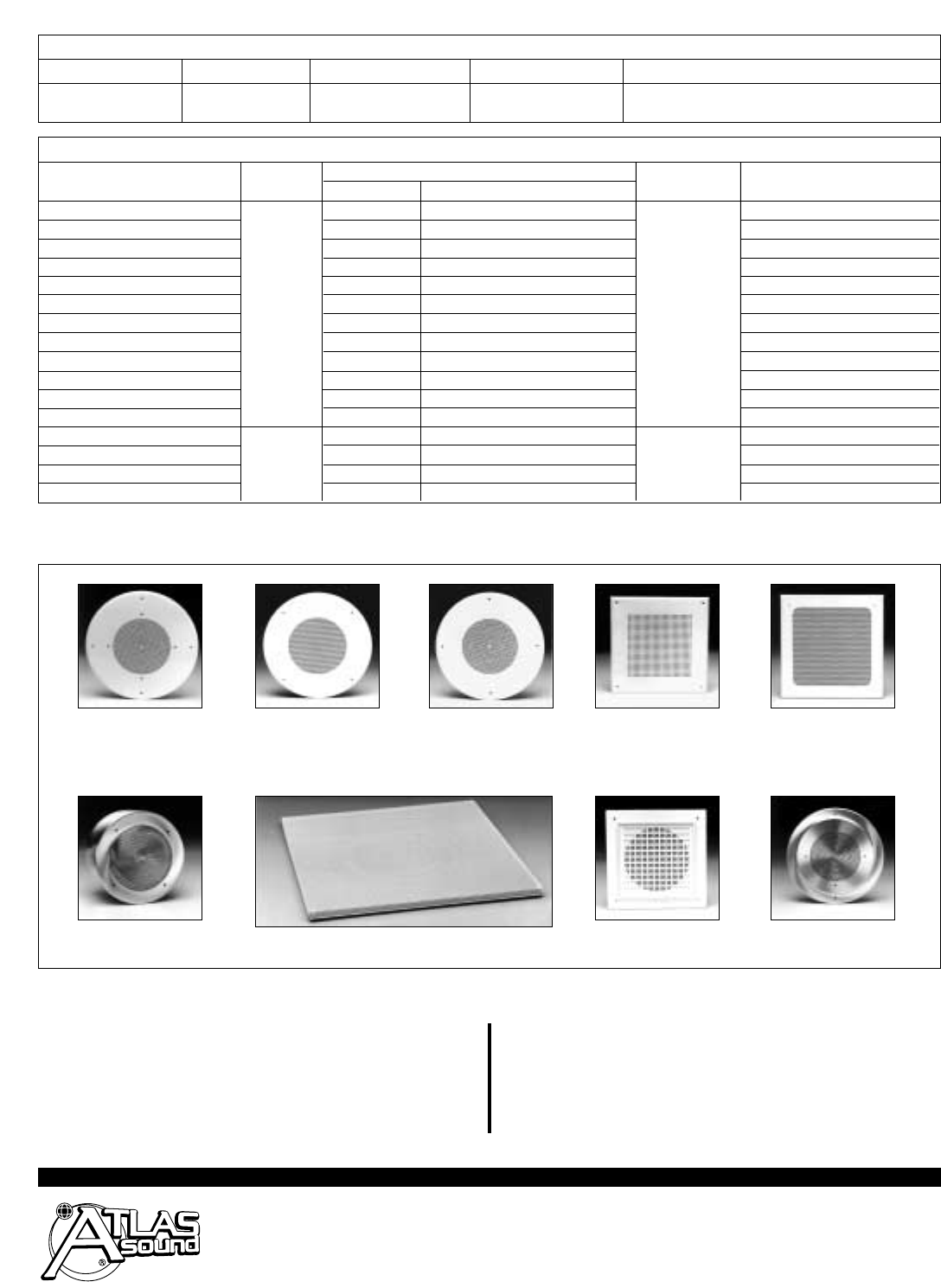

LOUDSPEAKER / TRANSFORMER / BAFFLE / ENCLOSURE INFORMATION
TRANSFORMER SPECIFICATIONS
PRIMARY TAPS SECONDARY INSERTION LOSS CORE SIZE DC BLOCKING CAPACITOR
1/2, 1, 2, & 5 8 Ohms 1.5dB
1
⁄2
" x
5
⁄8
" 10 mfd @ 50V (25V Xfmr)
Watts (13mm x 16mm) 4 mfd @ 150V (70.7V Xfmr)
UL Listed 8" diameter fire-protective signaling loudspeaker shall be
Atlas Sound single voice coil Model ________ (UHT Series) or dual
voice coil Model __________ (UKT Series) for supervised service.
UHT Series loudspeaker shall consist of a molded fire-retardant/mois-
ture-proof cone, whizzer cone, and 10 oz. ceramic magnet. It shall
have a single 1" diameter voice coil and shall be equipped with a
(70.7 or 25V) transformer, and a DC blocking capacitor for line super-
vision applications. Dual voice coil Series UKT shall provide for line
supervision with dual 1" dia. voice coils, two transformers, and a DC
blocking capacitor. Loudspeaker shall be pre-assembled to Atlas
Sound, baffle Model __________. Loudspeaker/baffle assembly shall
mount to Atlas Sound UL approved companion enclosure Model
__________.
* Noted assemblies are available in quantities of 100 or more only.
** Recessed enclosures for UL listed loudspeakers are also plenum rated under ULfile S1824.
U51-8
Standard Round
Grille for Stock
Availability
U161-8
Standard Square
Grille for Stock
Availability
U61-8W
U62-8
UM222W
UG22-8
U164-8
UVP161-R8
Vandal-Proof Grille
U410-8
ARCHITECT AND ENGINEER SPECIFICATIONS
