SRS-PC51.3-858-236-14.EFGS Page 1
3-858-236-14(1)
Stereo Active
Speaker System
SRS-PC51
Sony Corporation © 1996 Printed in Philippines
Operating Instructions
Mode d’emploi
Bedienungsanleitung
Manual de instrucciones
Before operating the system, please read this
manual thoroughly and retain it for future
reference.
WARNING
To prevent fire or shock hazard, do not expose the
system to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
Features
The Sony SRS-PC51 is a compact-size speaker
system with a built-in power amplifier designed
for the use with a computer. A Discman,
WALKMAN*, etc. can be connected to this system
as well.
•The magnetically shielded speakers have little
effect on a PC monitor or recorded tapes, etc.
when placed close to them.
•Easy installation on both sides of a PC monitor
with the supplied mounting brackets.
•Equipped with a headphones jack.
•Power output of 2.5 W + 2.5 W.
•IBB (Intelligent Bass Boost) circuit enable you to
obtain powerful bass, regardless of the sound
volume.
* WALKMAN is a registered trademark of Sony
Corporation.

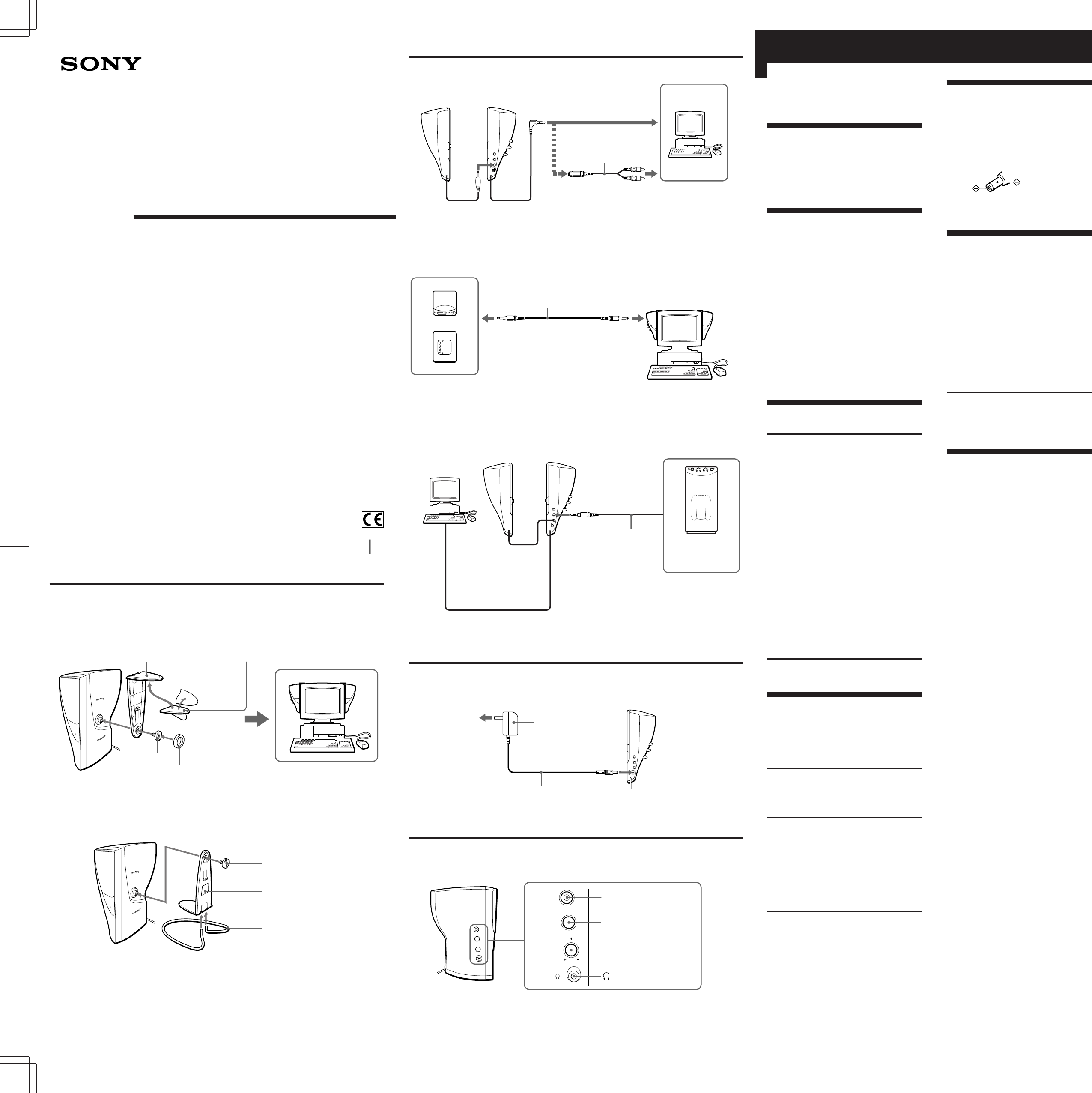

Installation (See fig. A)
Installing to the PC monitors 1
Notes
•The supplied mounting brackets may not fit
some PC monitors. In such a case, place the
system beside the computer on top of the desk.
•Clean the surface of the mounting brackets and
the PC monitor before attaching the double-sided
tapes. Otherwise, the double-sided tapes may
not adhere firmly to the surface of the PC
monitor and the system may fall off.
•To attach the system to the PC monitor firmly
using the double-sided tapes, press the mounting
bracket firmly to the PC monitor.
•If the picture on the PC monitor is distorted by
the vibration from the speaker system, turn
down the volume first. If there seems to be no
improvement, try placing the speaker system on
top of a desk etc.
•Depending on the mounting surfaces, there may
be cases in which the mounting brackets becomes
difficult to remove once attached. Also the
double-sided tapes used on the mounting
brackets may leave some marks on the surface of
the PC monitor when they are removed.
Placing on top of the desk 2
Connections (See fig. B)
Connect the left speaker to the source equipment.
When the left speaker is connected to a computer
equipped with a monaural jack, the sound may be
heard only from the left speaker.
To connect to a stereo phonetype
headphones jack
Use the optional PC-234HG plug adaptor or the
RK-G138HG connecting cord.
Connecting to a Discman, Walkman, etc.
1
Note
When two types of equipment are connected to the
system and are played at the same time, the sound
from both of them will come out of the speakers.
When you wish to play only one equipment, make
sure that the other equipment is turned off or its
volume is turned down.
Connecting to a sub woofer 2
Connect a sub woofer to OUTPUT (WOOFER) jack
(stereo mini jack). The volume of the connected
speaker system is adjustable with the VOLUME
control.
A
1
Screw
Vis
Rubber cushion
Tampons caoutchouc
to the PC monitor
vers le moniteur PC
B
1
D
Left speaker (rear)
Enceinte gauche
(arrière)
Right speaker (rear)
Enceinte droite
(arrière)
C
to a personal computer
à un ordinateur personnel
to a wall outlet
vers une prise murale
Mounting bracket
Support de montage
Double-sided tapes
Rubans à double face adhésif
Screw
Vis
Mounting bracket
Support de montage
POWER
VOLUME
TREBLE
MAX MIN
1
2
3
(headphones) jack
Prise de casque
to MIDI sound source (phono jacks)
à une source sonore MIDI (prises cinch)
Connecting cord (not supplied)
Cordon de liaison (non fourni)
to the headphones jack
(stereo mini jack)
vers la prise de casque
(minijack stéréo)
to the INPUT 2 jack
(rear)
vers la prise INPUT 2
(arrière)
2
Left speaker (rear)
Enceinte gauche (arrière)
to R OUT jack of the left speaker
à la prise R OUT de l’enceinte
gauche
to the DC IN 9 V jack
vers la prise DC IN 9V
AC power adaptor (supplied)
Adaptateur secteur (fourni)
Left speaker (rear)
Enceinte gauche (arrière)
Stand
Pied
to the R OUT jack
vers la prise R OUT
to an audio output jack
(stereo mini jack)
à une prise de sortie audio
(minijack stéréo)
Connecting cord RK-G136HG (not supplied)
Cordon de liaison RK-G136HG (non fourni)
right speaker (front)
Enceinte droite
(avant)
left speaker (front)
Enceinte gauche
(avant)
to OUTPUT (WOOFER)
à OUTPUT (WOOFER)
sub woofer
Caisson de grave
Power Source (See fig. C)
The mains power source is required when the
system is used.
Note on the AC power adaptor
Use only the supplied AC power adaptor. Do no
use any other AC power adaptor.
How to use (See fig. D)
1 Press the POWER switch (Ø) to turn on
the system.
The POWER indicator lights up.
2 Adjust the volume with the VOLUME
control.
3 Adjust the TREBLE control to your
preference.
Turn off the MEGA BASS (Walkman) or BASS
BOOST (Discman, etc.) function as it may cause
sound distortion.
After listening, press the POWER switch (ø) to
turn off the system. The POWER indicator goes
out.
Listening with the headphones
Connect the headphones (not supplied) to the 2
(headphones) jack on the left speaker. The soun
from the speakers is automatically turned off.
Precautions
•Use only the supplied AC power adaptor for
operating the system. Do not use any other AC
power adaptors.
•After operating the system with the AC power
adaptor, disconnect the AC power adaptor from
the wall outlet if the system is not to be used fo
an extended period of time. The POWER switc
on the left speaker does not turn the AC power
adaptor off.
•Do not open the speaker cabinets. Refer
servicing to qualified personnel only.
•Do not leave the system in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust, moisture, rain or mechanical
shock.
•Should any solid object or liquid fall into either
speaker, disconnect the AC power adaptor and
have the speaker checked by qualified personn
before operating it any further.
•When the speaker cabinet becomes soiled, clea
it with a soft cloth slightly moistened with a m
detergent solution. Never use alcohol, benzine
thinner as they may mar the finish.
•Although this system is magnetically shielded,
a precaution, do not leave recorded tapes,
watches, personal credit cards or floppy disks
using magnetic coding in front of the system fo
an extended period of time.
English
Polaritry of the plug
2
