Black Box LMC5207A-R2 Portable Media Storage User Manual



8
Replacing Power Supply Modules
User-Replaceable Power Supply Modules
While power supply modules are redundant, failed power supply modules should promptly
be replaced to maintain network integrity and prevent data loss.
To replace a power supply module:
1.
Disconnect the power source from the power supply module.
2.
Remove the screws of the retainer plate (on some AC modules).
3.
Move the Power Supply Release switch toward the right or unscrew captive release
screw.
4.
Before grasping the power supply module by the silver handle, press the release screw
and then slide out of the chassis (Power supply modules are hot-swappable).
5.
Install new power supply module. If module is equipped with an ON/OFF switch install
the module with the switch in the OFF position.

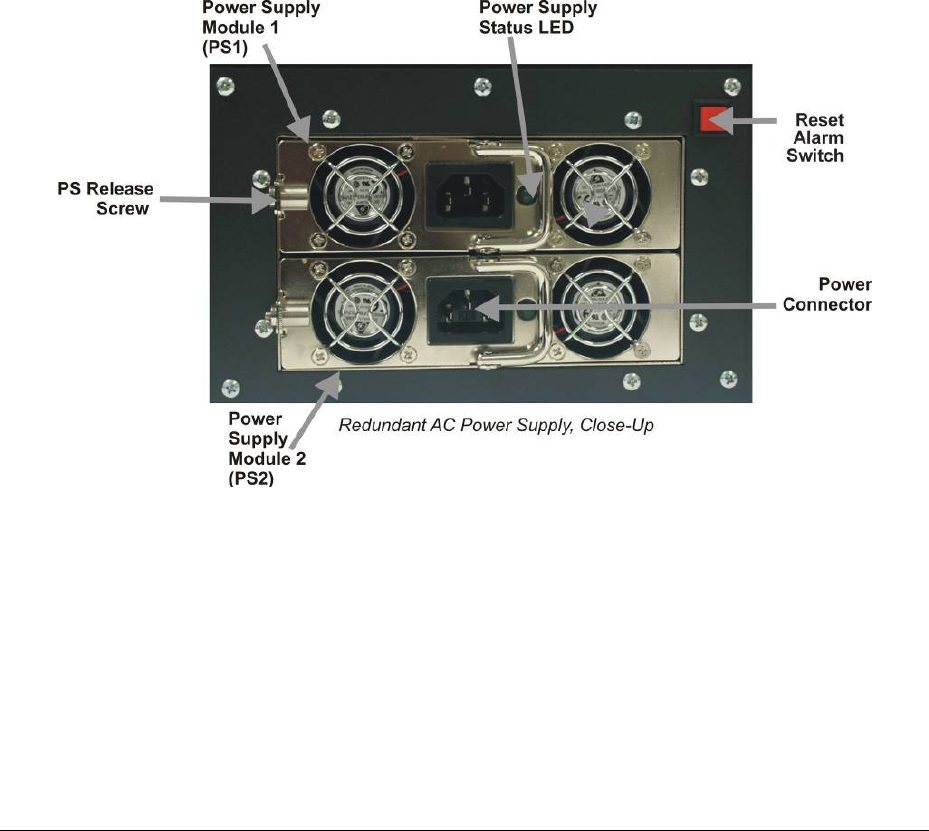

Dual AC, Part Number LMC5207A-R2
