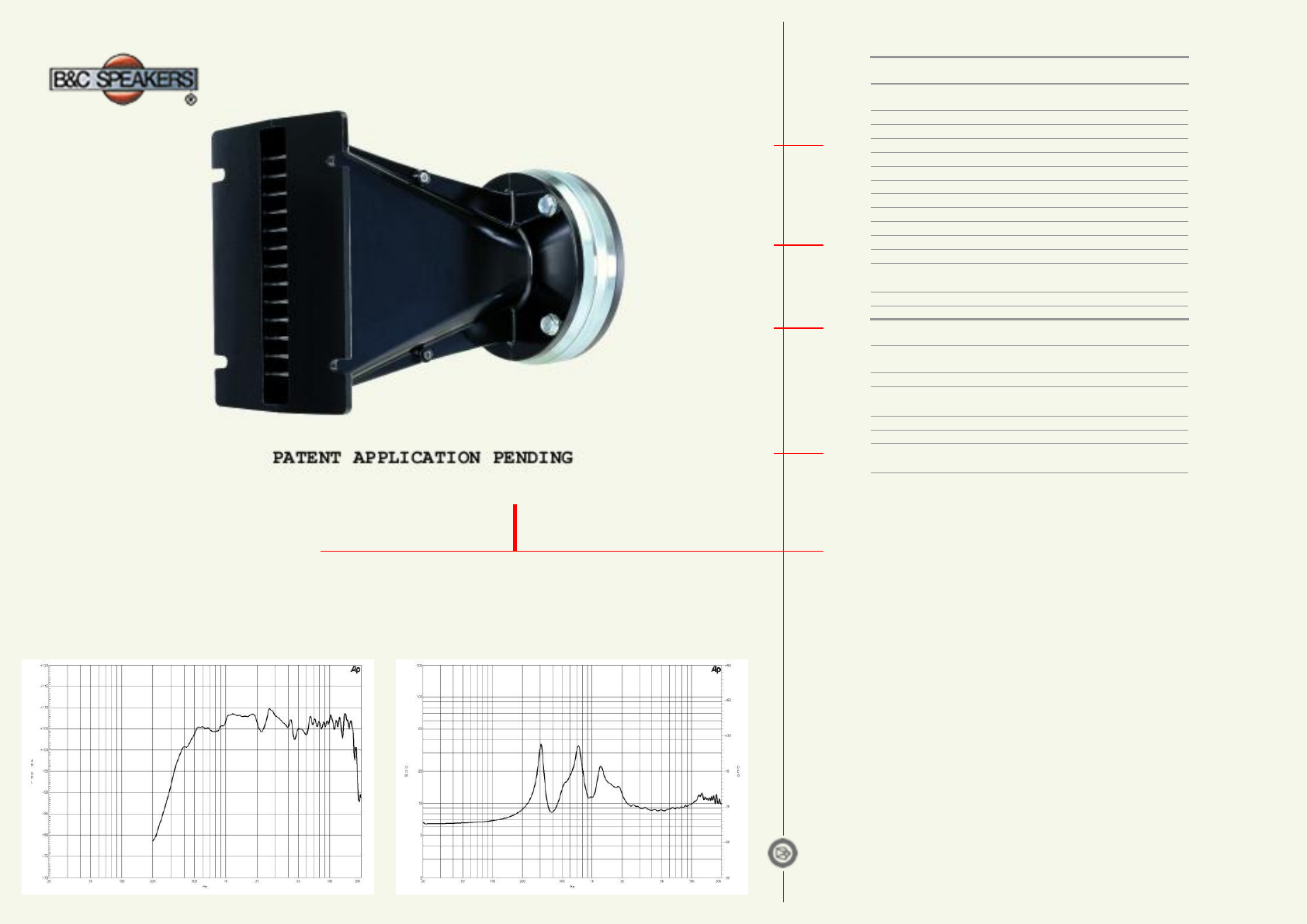

Line Array optimized Waveguide
Max. horizontal coverage 120°
220 W continuous program power capacity
75 mm (3 in) aluminium voice coil
Composite Polyimide/Titanium diaphragm
500 – 17000 Hz response
108 dB sensitivity
Horizontal Coverage 120° max
Active Radiating Factor 93.7 %
Recommended Crossover (1) 0.8 kHz
Waveguide Material Cast Aluminium
Nominal Impedance 8 ohm
Minimum Impedance 8.6 ohm
Nominal Power Handling (2) 110 W
Continuous Power Handling (3) 220 W
Sensitivity (1W/1m) (4) 108 dB
Frequency Range (5) 0.5 -17 kHz
Voice Coil Diameter 75 mm (3 in)
Winding Material Aluminium
Diaphragm Material Composite
Flux Density 1.85 T
Mounting and Shipping Info
Waveguide Baffle Cutout 153x25 mm (6x1 in)
Driver diameter 124 mm (4.9 in)
Dimensions 163x130x235 mm
(6.4x5.1x9.3 in)
Net Weight 3.3 kg (7.3 lb)
Shipping Weight 3.4 kg (7.5 lb)
Shipping Box 245x140x175 mm
(9.6x5.5x6.9 in)
12 dB/oct. or higher slope high-pass filter.
2 hours test made with continuous pink noise signal (6 dB crest factor).
Power calculated on rated minimum impedance.
Power on Continuous Program is defined as 3 dB greater than the
Nominal rating.
Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance.
Waveguide mounted on 90°x10° bell horn
