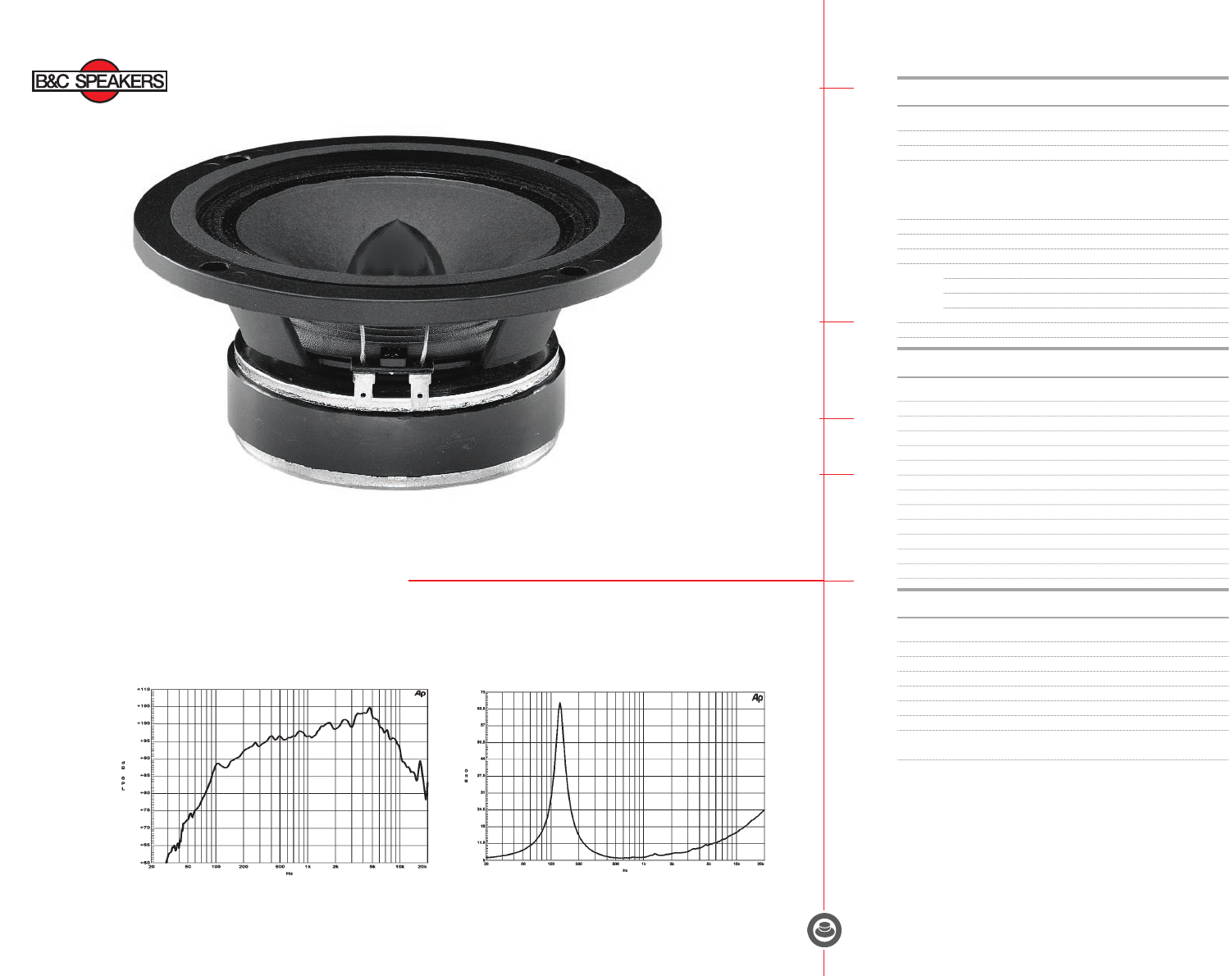

High efficiency 6" cone midrange, ideally suited for three and
four way systems. Very smooth response from 400 Hz to 8 kHz.
An aluminium phase plug increases axial sensitivity and
controls high frequency dispersion.
Specifications
Nominal Diameter 170 mm (6.5 in.)
Nominal Impedance 8 Ω
Minumum Impedance 6 Ω
Power Handling
(300-3000 Hz)
Nominal
1
120 W
Continuous Program
2
240 W
Sensitivity (1W/1m)
3
99 dB
Frequency Range 150-8000 Hz
Voice Coil Diameter 38 mm (1.5 in)
Winding Material Aluminium
Former Material Fiber Glass
Winding Depth 7 mm (9/32 in)
Magnetic Gap Depth 6 mm (1/4 in)
Flux Density 1.4 T
Thiele & Small Parameters
4
Fs 126 Hz
Re 5.2 Ω
Qes 0.39
Qms 4.6
Qts 0.36
Vas 6 dm
3
(0.21 ft
3
)
Sd 132 cm
2
(20.5 in
2
)
η
0
3%
X max ± 0.6 mm
X var ± 1.5 mm
Mms 6 g
Bl 8.2 T·m
Le 0.6 mH
Mounting and Shipping Information
Overall Diameter 187 mm (7.4 in)
Bolt Circle Diameter 172 mm (6.7 in)
Baffle Cutout Diameter 145 mm (5.7 in)
Depth 78 mm (3.1 in)
Flange and Gasket Thickness 11 mm (7/16 in)
Net Weight (1 unit) 2.4 kg (5.3 lb)
Shipping Weight (4 units) 10.9 kg (24 lb)
Shipping Box (4 units) 405x225x210 mm
(15.9x8.8x8.3 in)
1
2 hours test made with continuous pink noise signal (6 dB crest factor). Power
calculated on rated minimum impedance. Loudspeaker in free air.
2
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
3
Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance. Average
SPL from 200 to 8000 Hz.
4
Thiele-Small parameters are measured after a high level 20 Hz sine wave precon-
ditioning test.
6 PEV 13 | Midrange
