Filter
Top Products
60

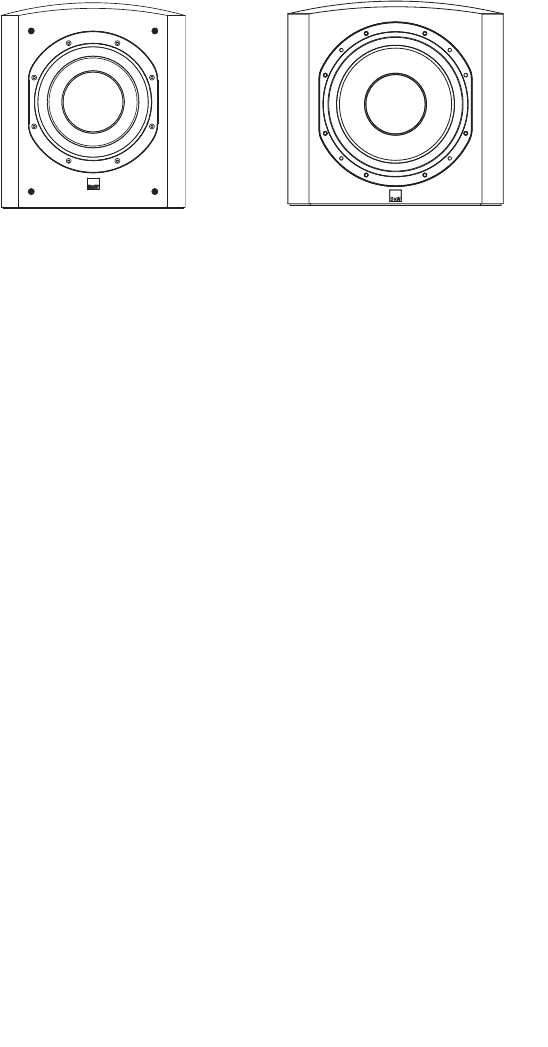

ASW825
Description
Drive units
System frequency range
System frequency response
Amplifier
Low-Pass Filter
High-Pass Filter
Dimensions
Net Weight
Active closed-box subwoofer system
ø300mm (12 in) Rohacell
®
cone long-throw
-6dB at 15Hz and 40/140Hz adjustable (EQ at A)
-3dB 20Hz – 31/110Hz adjustable (EQ at A)
Power output: 1000W continuous
Input impedance: 33k
Ω
Signal / noise: >90dB
Functions: Input level
Low-pass filter frequency
Low-pass filter bypass
Bass roll-off alignment
Auto sense on/standby
Phase switch
Inputs: Line In (RCA Phono)
Outputs: Line Out (RCA Phono)
high-passed
Link Out (RCA Phono)
Active 2nd-order, variable cut-off frequency
Active 3rd-order -6dB at 80Hz
Height: 529mm (20.8 in) not including feet
Width: 476mm (18.7 in)
Depth: 351mm (13.8 in)
including grille and controls
35kg (77 lb)
ASW855
Active closed-box subwoofer system
ø380mm (15 in) Rohacell
®
cone long-throw
-6dB at 14Hz and 40/140Hz adjustable (EQ at A)
±3dB 18Hz - 31 / 110Hz adjustable (EQ at A)
Power output: 1000W continuous
Input impedance: 33k
Ω
Signal / noise: >90dB
Functions: Input level
Low-pass filter frequency
Low-pass filter bypass
Bass roll-off alignment
Auto sense on/standby
Phase switch
Inputs: Line In (RCA Phono)
Outputs: Line Out (RCA Phono)
high-passed
Link Out (RCA Phono)
Active 2nd-order, variable cut-off frequency
Active 3rd-order -6dB at 80Hz
Height: 529mm (20.8 in) not including feet
Width: 562mm (22.1 in)
Depth: 522mm (20.6 in)
including grille and controls
45kg (99 lb)
