Audio Authority 932 Portable Speaker User Manual


  Open as PDF
of 1

ASD Tech Support USA and Canada: 800-322-8346 (Mon-Fri 8:30 AM to 5:00 PM Eastern Time)
Phone: 859-233-4599 Fax: 859-233-4510 Hookup drawings and FAQ http://www.audioauthority.com
SYSTEM
BUS
MODULE ID GROUP
( + – )
FRONT, REAR, SUB, ETC:
10-19
0-9
EXPANSION / 984
POWER
Model 932
ASD
SPEAKERS
SPEAKER
BUS
PSB
LEFT RIGHT
1 - 45 - 8
87654321
701-1090
Speaker Selector
SYSTEM
BUS
MODULE ID GROUP
( + – )
FRONT, REAR, SUB, ETC:
10-19
0-9
EXPANSION / 984
POWER
Model 932
ASD
SPEAKERS
SPEAKER
BUS
PSB
LEFT RIGHT
1 - 45 - 8
87654321
701-1090
Speaker Selector
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
S
+ –
+ –
System Bus
Connections
Settings for
Module
as LEFT Channel
Module
Address
Settings
Speaker Bus
Connections
Left Speaker
Position #8
Settings for
Module as
RIGHT Channel
Connectors are
removable for
service.
Optional
994/995
Product
Select Button
Optional
996/997
Product
Indicator
(LED)
Left & Right Speakers

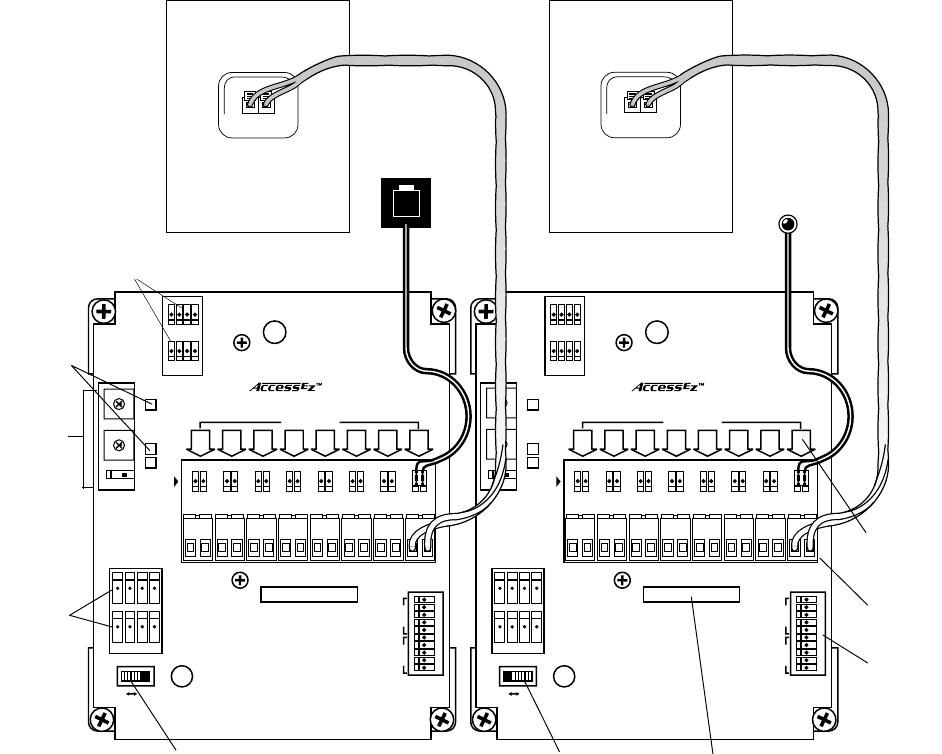

Model 932 Speaker Modules can be configured to function as left, right or mono modules. The slide switch on
the bottom left side of the module is marked "LEFT-RIGHT." Position the switch to "LEFT" for left channel
function and RIGHT for either right channel or MONO function. (If used for mono operation there will not be
a corresponding "L" module.)
932 modules in the Front Speaker Product Group are unique in the fact that they share the same GROUP
Address with the receiver group. For example, if the Receiver Product Group number is "4", then the Front
Speaker Group number would also be "4". All other speaker groups should have a higher GROUP address.
LEFT and RIGHT modules have the same Module ID (e.g. for front speakers 1-8 both LEFT & RIGHT modules
would be addressed: MODULE ID= “0-9” on the slide switch, and “0” on the rotary switch; GROUP= 4.
The next module pair for front speakers 9-16 both LEFT & RIGHT modules would be addressed: MODULE
ID= “0-9” on the slide switch, and “1” on the rotary switch; GROUP= 4, etc.)
Right Speaker
Position #8
Write in the
Speaker Group
Name
Port for Model
984 Speaker
EQ Injector
Write in each
Speaker’s
number (e.g.
16 or 24)
Write in the
Product
Group and
Module ID
settings
