INFORMACAST
®
IP COMPLIANT LOUDSPEAKER SYSTEM
POWERED BY CISCO
®
POE NETWORK SWITCHES
I8S
FEATURES
• Use with Berbee InformaCast
®
software, Cisco
®
POE networks
& Cisco
®
IP Telephones to create extremely versatile paging and
messaging systems
• Highly efficient 10oz dual cone loudspeaker system provides 94dB
average SPL @ 1W/1M and is capable of 103dB @ 1 meter via the
rated power of the internal IP addressable amplifier
• 105˚ dispersion in the 2kHz octave band (-6dB)
• Wide frequency response of 86Hz to 8kHz (-3dB) is perfect for speech
and general messaging playback
APPLICATIONS
The perfect choice for education, military/government, and large scale
corporate applications, Berbee’s InformaCast IP Broadcasting Solution
revolutionizes communication, clock/bell and message playback
functionality. It provides the capability to simultaneously send a multicast
audio stream and text messages to any combination of Cisco IP phones,
Atlas Sound IP speakers, and PCs. With the push of a single button on
the phone or a single click from a PC, a user can send a live, recorded,
or scheduled broadcast to one or more paging groups. With InformaCast
compliant loudspeaker products from Atlas Sound, system designers
and integrators will have the ability to deploy extremely large scale and
complex paging systems over new or existing Cisco networks with the
convenience of centralized administration by IT personnel.
Extreme cost savings can also be realized from the elimination of
separate “stand alone” paging systems when InformaCast is utilized in
education applications in conjunction with the model I8S speaker baffle
system.
GENERAL DESCRIPTION
Model I8S from Atlas Sound consists of a factory assembled loudspeaker/
baffle with PCB amp/control board securely mounted to the rear of the
baffle via concealed weld studs. The amp/control board is capable of
producing 9 Watts RMS into the 8 Ohm loudspeaker with 9VDC minimum
power provided by Cisco IEEE 802.3AF compliant POE switches.
(local 12-18VDC PSUs may also be used instead of POE switches).
Interconnection is via a board mounted female RJ-45 connector. The
industry standard C10A loudspeaker used in the I8S is a dual cone 8”
(205mm) loudspeaker with a 10oz (260g) ceramic magnet. It includes a
curvelinear paper cone for lower harmonic distortion. The loudspeaker
is also equipped with a full 1” (25mm) diameter copper voice coil with
aluminum former for better heat dissipation. The 18 gauge construction
of the metal baffle provides security and durability in commercial
applications. The baffle is finished in neutral white electrostatic powder
coat and is packaged with all necessary mounting screws.
ENCLOSURE IS NOT INCLUDED. Available optional enclosures:

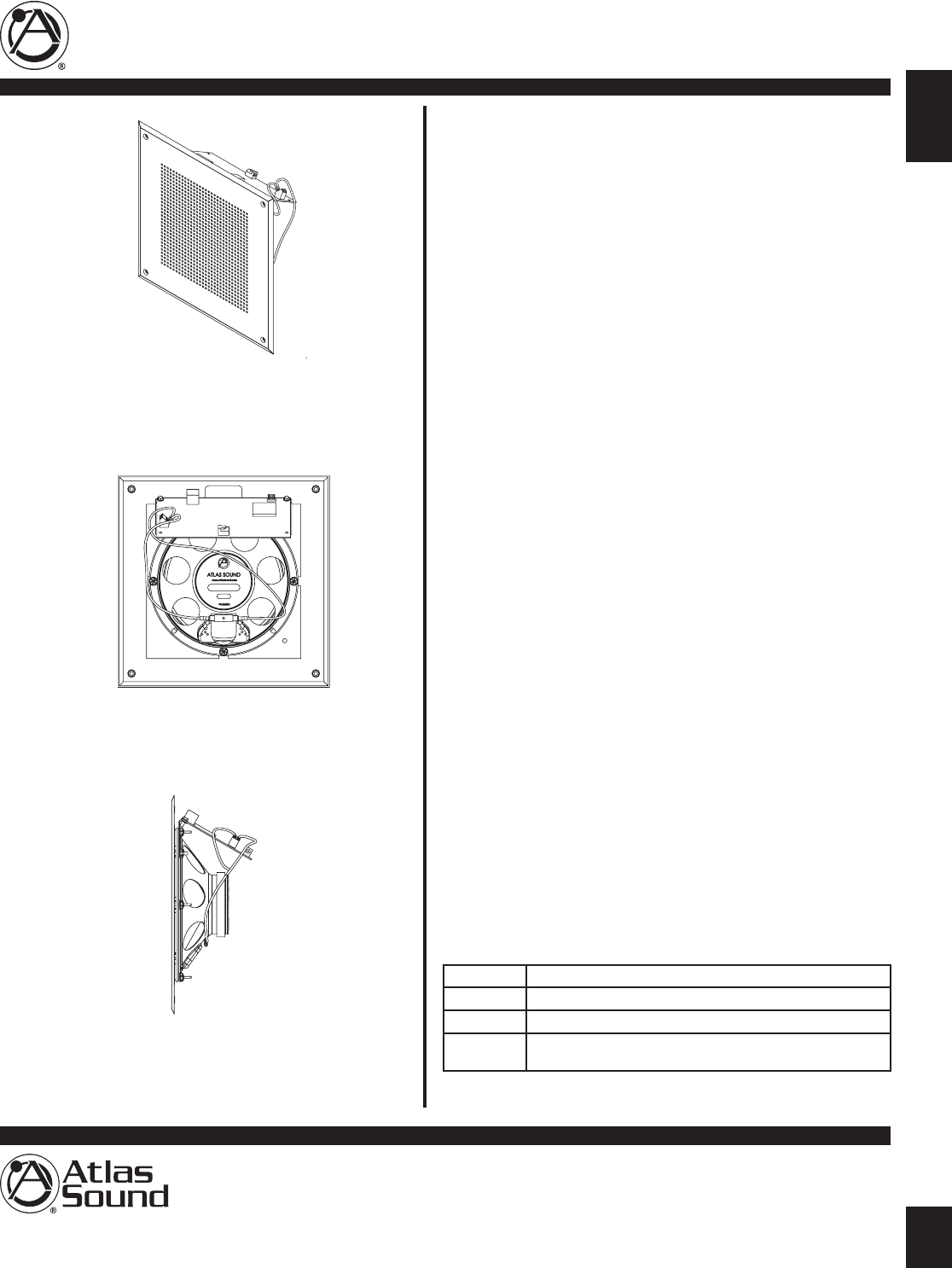

I8S
(Back View)
11.50
11.50
4.07
4.21
11.50
11.50
4.07
4.21
I8S
(3/4 View)
11.50
11.50
4.07
4.21
MODEL DESCRIPTION
SEA-I8S
Surface mount, angled enclosure for I8S, neutral white finish
SEST-I8S
Surface mount, straight enclosure for I8S, neutral white finish
FEST-I8S
Flush mount straight enclosure for I8S, reclaimed powder coat
finish
I8S
(Side View)
