Strategy Series
®
II Coaxial Loudspeaker System
FAP8CXT
Features
• ExtendedLowFrequencyResponsefromtheOptimallyTuned&
PortedDeepDrawnGalvanizedSteelEnclosure(937in
3
)
• Unique“TrapDoor"InputSectionAllowsforThroughConduitRuns
withRigidorFlexConduit
• 1"ExitCompressionHighFrequencyDriverCoupledtoaSpecially
DesignedConicalWave-GuideHornProvidesExceptionalOutput&
AccurateHighFrequencyReproduction
• 90°ConicalDispersion(2kHzOctaveBand)
• FrontMountedTapSelectorSwitchforEasySystemTuning
Adjustments(1.9Watts–60Watts@70.7VPlus8ΩSetting)
• IncludesC-RingandV-RailsforCeilingMounting
• “Press-Fit"GrilletoBetterBlendIntoContemporaryArchitecture
Technical Specifications
Depth: 22
3
4"(578mm)
Diameter: 15
3
4"(401mm)
ShippingWeight: 23lbs(10.43kg)
FrequencyResponse: 60Hz–15kHz(±5dB)
PowerTaps: 7.5,15,30,60,&8Ω
SpeakerType: Coaxial
Dispersion: 90°
Sensitivity: 92dBAverage
CrossoverFrequency: 2kHz
Applications
TheAtlasSoundFAP8CXTisatruecompressiondriverpremium
performance70.7V/100V,tuned&ported8"coaxialceilingspeaker
system.Thesystemisperfectlysuitedformanybusinessmusicand
publicaddressapplicationswherehighceilingsrequireloudspeakerswith
increasedefficiencyandtighterpatterncontrol.
TheFAP8CXTSystemhasa90°dispersionangleandiswellsuitedfor
higherceilingapplicationswheretighterpatterncontrolisrequired.
TheFAP8CXTfeaturesacurvilinear,polypropyleneconeforlower
harmonicdistortionandabuilt-in2kHzcrossovernetworkforproper
frequencytransitionbetweenthetwotransducers.Thisloudspeakeris
factoryassembledinanoptimallytuned&porteddeepdrawnenclosure
andincludesaspeciallydesigned60Watthighperformance70.7V/100V
transformer.Aconvenient,frontmounted,multi-positionselectorswitch
allowstapadjustmentwithouttheneedtoremovethespeakerfrom
theceiling.Thistapselectorswitchalsoincludesatransformerbypass
settingforinstanceswheretheFAP8CXTdriverisdirectcoupledtoalow
impedanceamplifier.

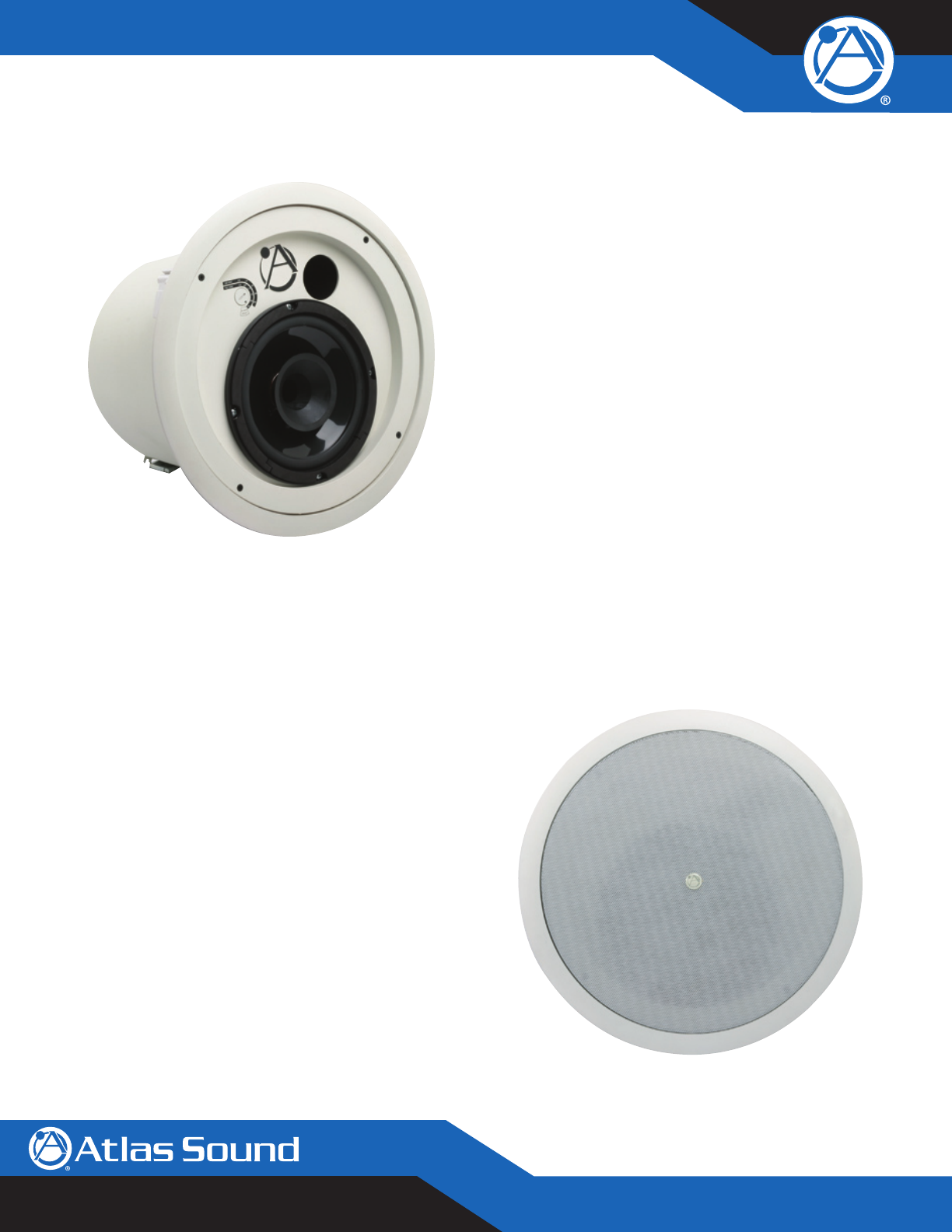

FAP8CXT
FAP8CXT
with Grille
