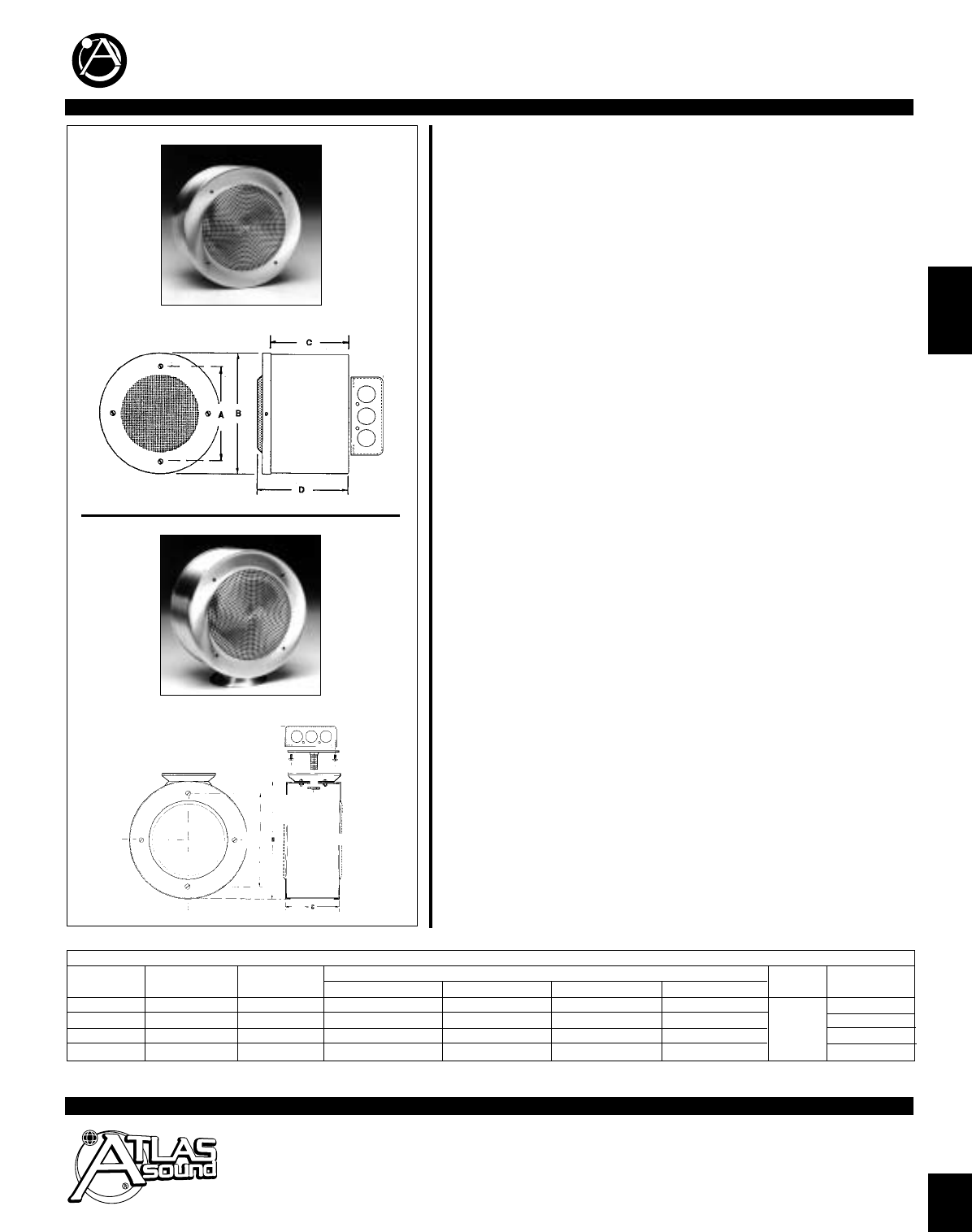

Specifications subject to change without notice
© 2001 Atlas Sound LP Printed in U.S.A. 000501 SL3-1469
203
THREE
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A. / TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
UNIDIRECTIONAL AND BI-DIRECTIONAL
SURFACE BAFFLES FOR 4" AND 8" LOUDSPEAKERS
410 Series
510 Series
FEATURES
• Ideal for Corridor Applications Where Surface Mounting Space is Limited
• Attractive, Non-Rusting Aluminum Construction
• Choose from Unidirectional or Bi-directional Models for 4" (102mm) or
8" (203mm) Loudspeakers
APPLICATIONS
Atlas Sound 410 and 510 Series cylindrical baffle/enclosures are designed
for surface applications where mounting space is limited. Units may be wall
or ceiling mounted in school and medical-facility corridors, office hallways,
outdoor breeze-ways, or wherever unidirectional or bi-directional sound
dispersion is desired.
GENERAL DESCRIPTION
410 Series. Compact unidirectional aluminum baffle/enclosure with one-piece
grille provides long lasting service indoors or out. Sturdy assembly features a
spun .038 aluminum housing and mounts easily to walls, ceilings, or to 4"
(102mm) octagon E.O. boxes (manufactured by others). Model 410-4 accom-
modates a standard 4" (102mm) loudspeaker; Models 410-8 and 410-8W mount
a standard 8" (203mm) loudspeaker. Baffle interior is undercoated and patch-
jute lined to prevent mechanical and acoustical resonance. Assemblies are fin-
ished in satin aluminum or textured white (W) epoxy where noted.
510 Series. These compact aluminum baffle/enclosures are identical to the
410 Series (above) with the addition of a circular mounting canopy complete
with mounting hardware and second grille to enable bi-directional sound disper-
sion. Model 510-4 mounts a standard 4" (102mm) loudspeaker; Models 510-8
and 510-8W mount a standard 8" (203mm) loudspeaker. Aluminum housing is
patch-jute lined and undercoated to allow clear, audible loudspeaker perfor-
mance by preventing mechanical and acoustic resonance. One grille per unit
includes studs for convenient loudspeaker mounting. Complete assembly
installs to a 4" (102mm) octagon E.O. box (by others). Finished in satin brushed
aluminum or textured white (W) epoxy where noted.
ARCHITECT AND ENGINEER SPECIFICATIONS
Baffle shall be Atlas Sound Model ____ [410-4, 510-4 for 4" (102mm) loud-
speakers; 410-8(W), 510-8(W) for 8" (203mm) loudspeakers]. It shall be of (uni-
directional, bi-directional) design. Housing shall be manufactured of spun .038
aluminum and the interior shall be undercoated and patch-jute lined to prevent
mechanical and acoustical resonances. Loudspeaker grilles shall be of one-
piece construction. One grille per model shall include provisions to mount Atlas
Sound (4" or 8") loudspeaker Model ____. Baffle shall be finished in (satin
brushed aluminum or textured white epoxy). Dimensions shall be ___.
Assembly shall mount to a standard 4" octagon E.O. box (by others).
SPECIFICATIONS
MOUNTING SPEAKER DIMENSIONS
MODEL TYPE SIZE (A) DIAMETER (B) DEPTH (C) PROJECTS (D)
MOUNTS
WEIGHT
410-4 Unidirectional 4" (102mm) 4
11
⁄
16
" (119mm) 6" (152 mm) 4
1
⁄
4
" (108mm) 4
1
⁄
2
" (114mm) 4"
0.5 Lbs. (.23kg)
410-8(W)* Unidirectional 8" (203mm) 7
5
⁄
8
" (194mm) 9
5
⁄
16
" (237mm) 4
7
⁄
16
" (113mm) 4
13
⁄
16
" (122mm) Octagon 1.0 Lb. (.45kg)
510-4 Bi-directional 4" (102mm) 4
11
⁄
16
" (119mm) 6" (152mm) 4
3
⁄
4
" (121mm) 6
3
⁄
8
" (162mm) E.O. .0.7 Lbs. (.3kg)
510-8(W)* Bi-directional 8" (203mm) 7
5
⁄
8
" (194mm) 9
5
⁄
16
" (237mm) 5
1
⁄
4
" (133mm) 10" (254mm) Box 1.2 Lbs. (.54kg)
* Note: (W) denotes textured white epoxy finish. Standard finish is satin aluminum.
A
B
C
D
E.O.
Box
E.O.
Box
410 Series
510 Series
